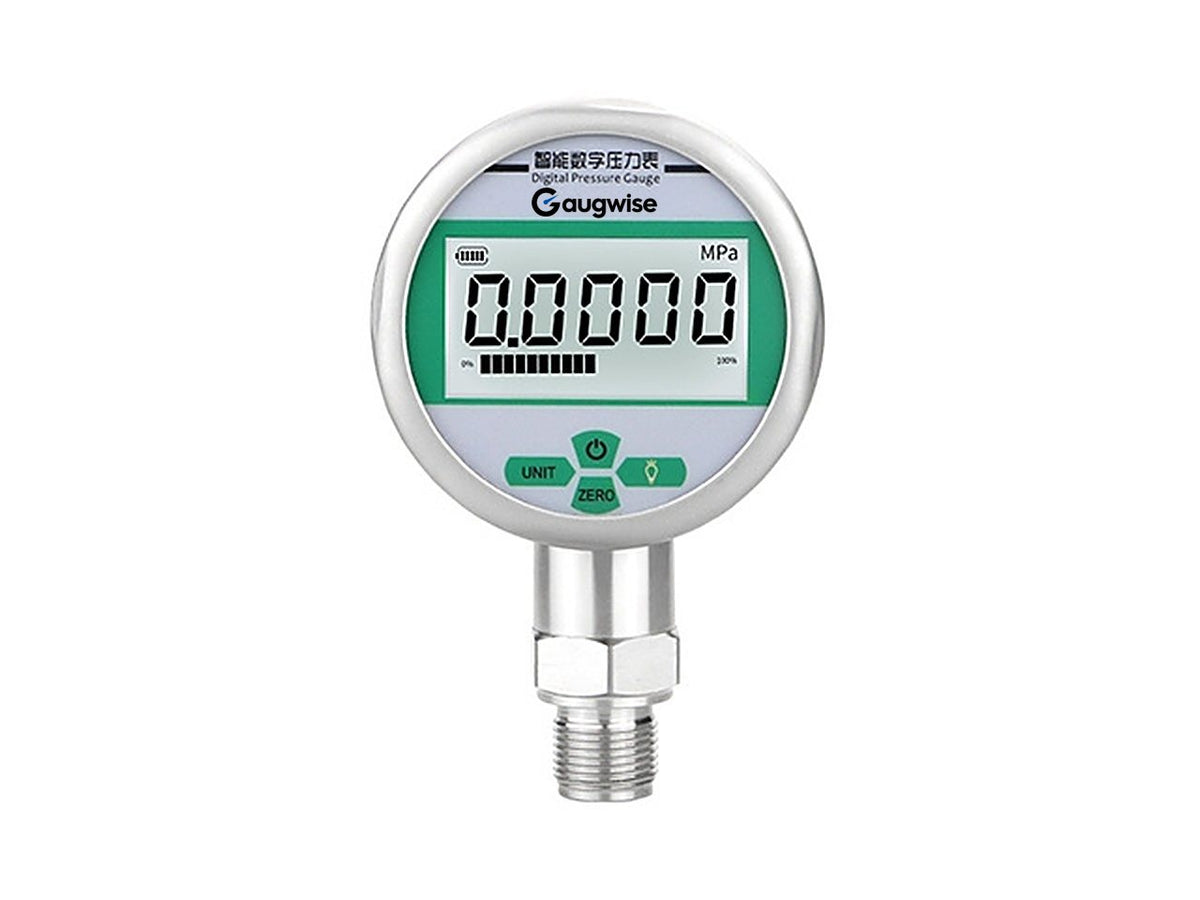

Gaugwise YS80BF 80mm Stainless Steel Digital LCD Pressure Gauge
Gaugwise YS80BF 80mm Stainless Steel Digital LCD Pressure Gauge
SKU:GW-YS80BF-0-1MPa
Couldn't load pickup availability
Share
The Gaugwise YS80BF is a precision 80mm digital pressure gauge engineered with a rugged stainless steel case and a high-resolution 5-digit LCD readout for demanding test benches, calibration facilities, and OEM machinery panels. Free custom dial face and bezel printing is included on every order from a 1-piece MOQ—integrate your corporate logo, custom engineering units, or panel tags at no additional cost (specify at checkout or message our team).
Technical Specifications
| Model | YS80BF (stainless steel case, back flange / panel mount) |
| Dial Diameter | 80 mm (nominal) |
| Measurement Range | 0–1.0 MPa, 0–2.5 MPa, 0–6.0 MPa, 0–10 MPa, 0–25 MPa |
| Accuracy Class | ±1.0% Full Scale |

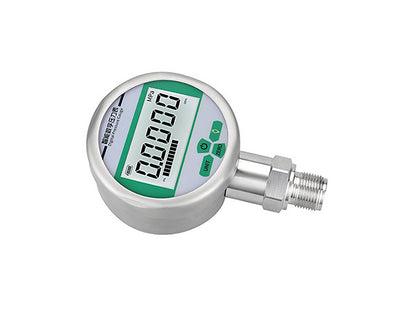

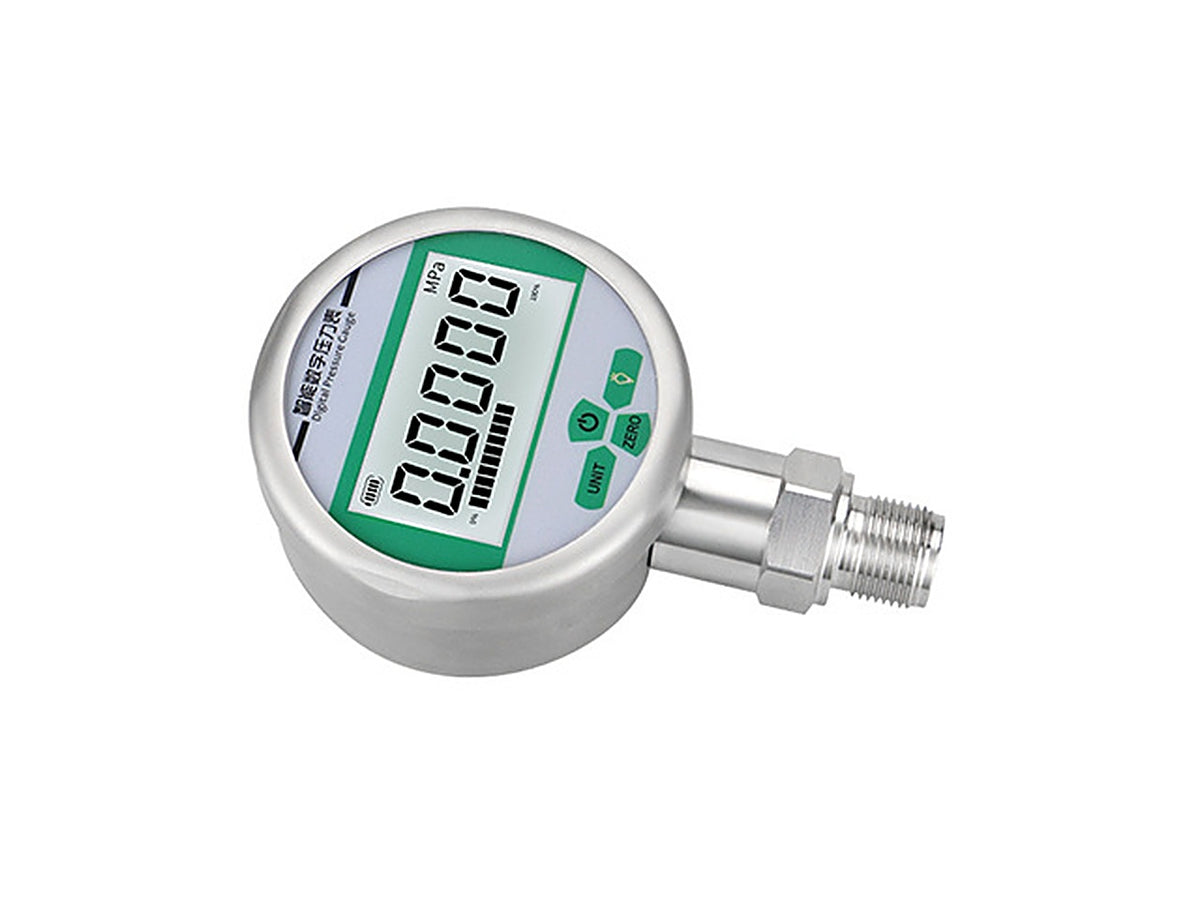

| Display Readout | 5-digit high-contrast LCD with battery indicator and bar graph |

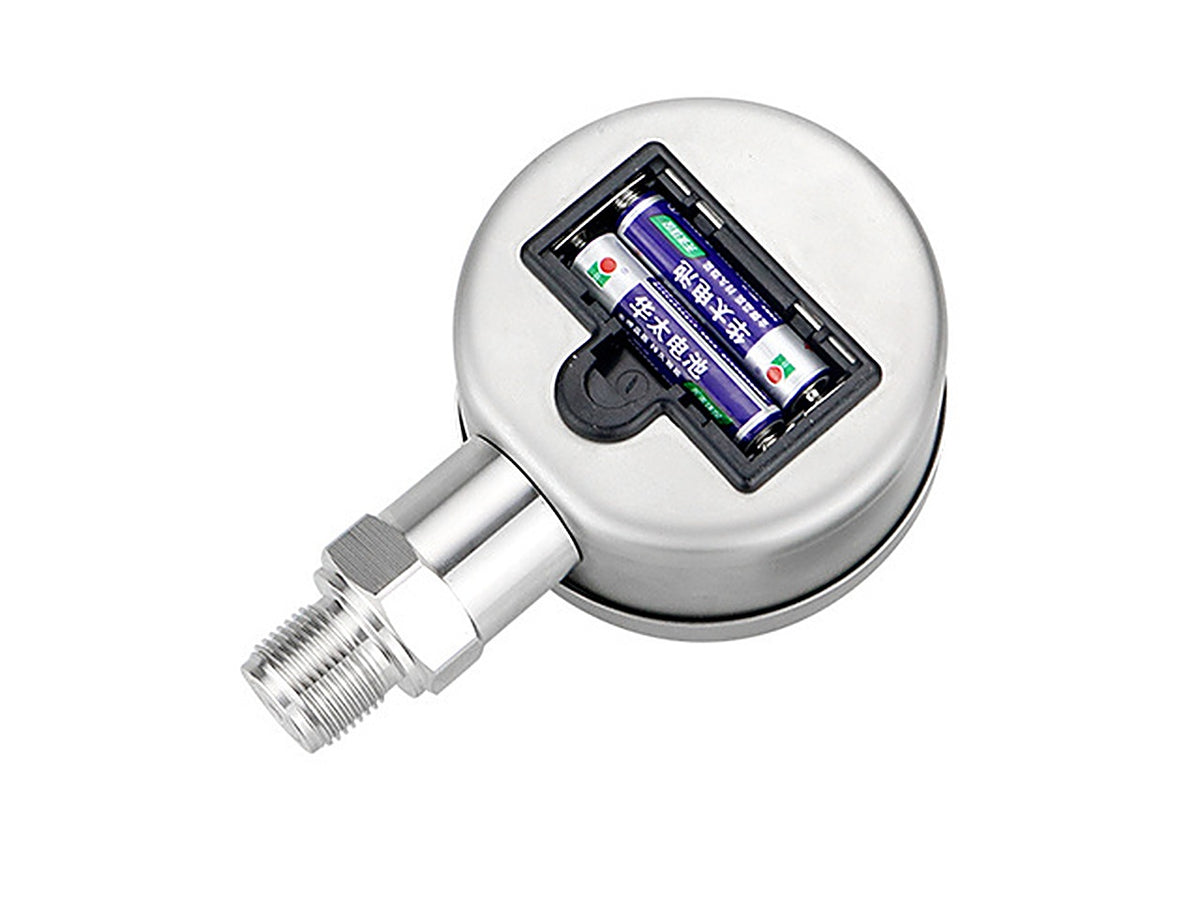

| Power Supply | Battery-powered (independent field operation) |

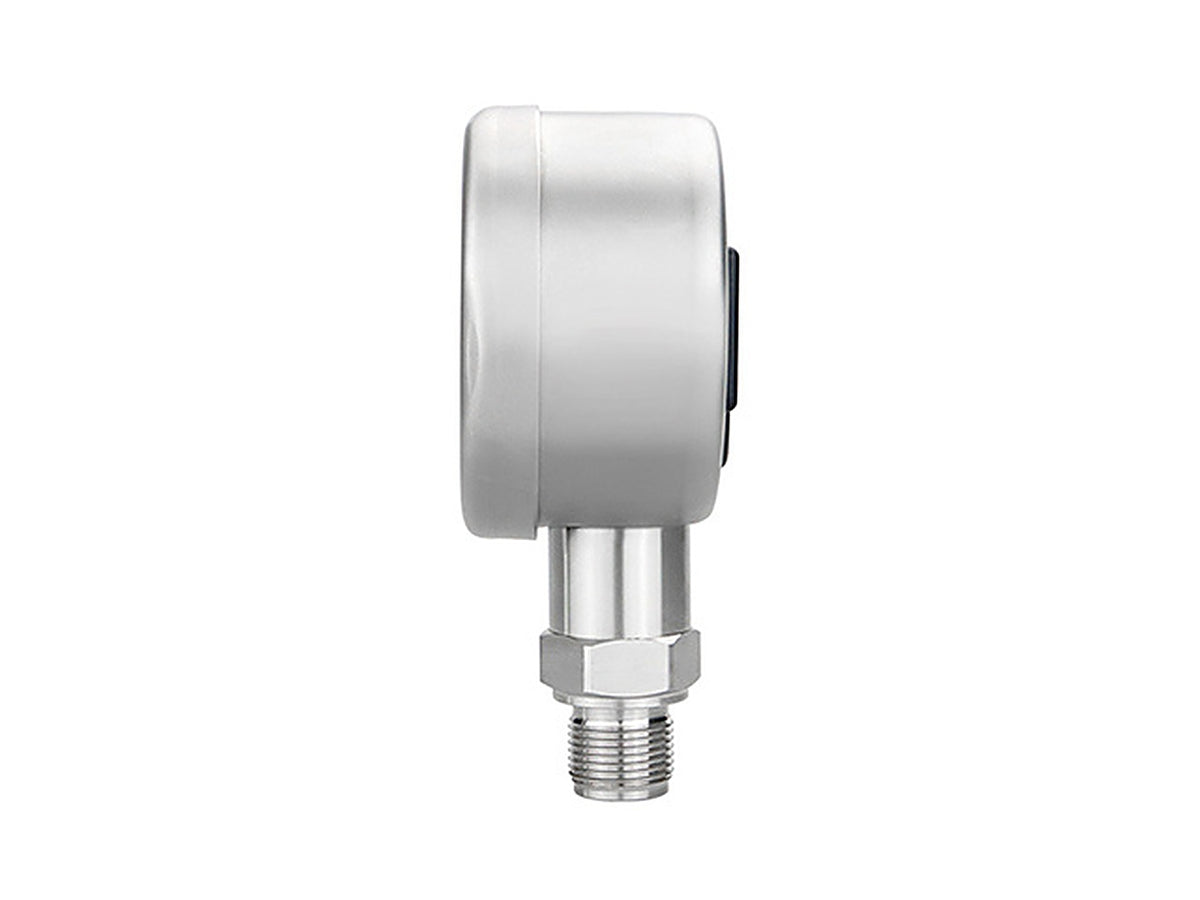

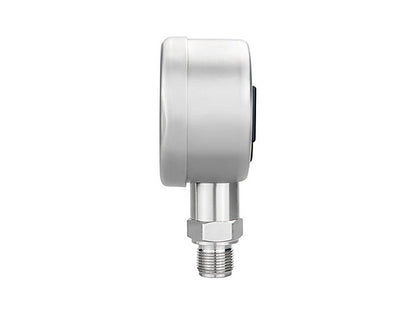

| Case Material | Heavy-duty 304 stainless steel with back mounting flange |
| Process Connection | M20×1.5 / 1/2" NPT / G 1/2" (configurable) |
| Single-Unit Weight | Approx. 0.45 kg |
| Country of Origin / HS Code | China / 9026.20 |
Applications
- Hydraulic power unit commissioning and high-pressure line testing
- Metrology laboratories, portable calibration kits, and test benches
- OEM machinery panels and flush-mount control consoles
- Industrial pneumatic automation and process pressure auditing
- Battery-powered field troubleshooting and mobile maintenance
Procurement & OEM Support
Manufactured under rigorous Gaugwise quality standards for factory-direct dependability. Every unit is made-to-order with a standard production lead time of ~10 working days. Tiered volume discounts apply automatically at checkout. Need custom pressure ranges, private label branding, or project quantity quotes? Request a custom quote from our engineering team.
