GaugWise YNXC100 100mm Electric Contact Gauge
GaugWise YNXC100 100mm Electric Contact Gauge
SKU:GW-YNXC100-0-0.1MPa
Couldn't load pickup availability
Share

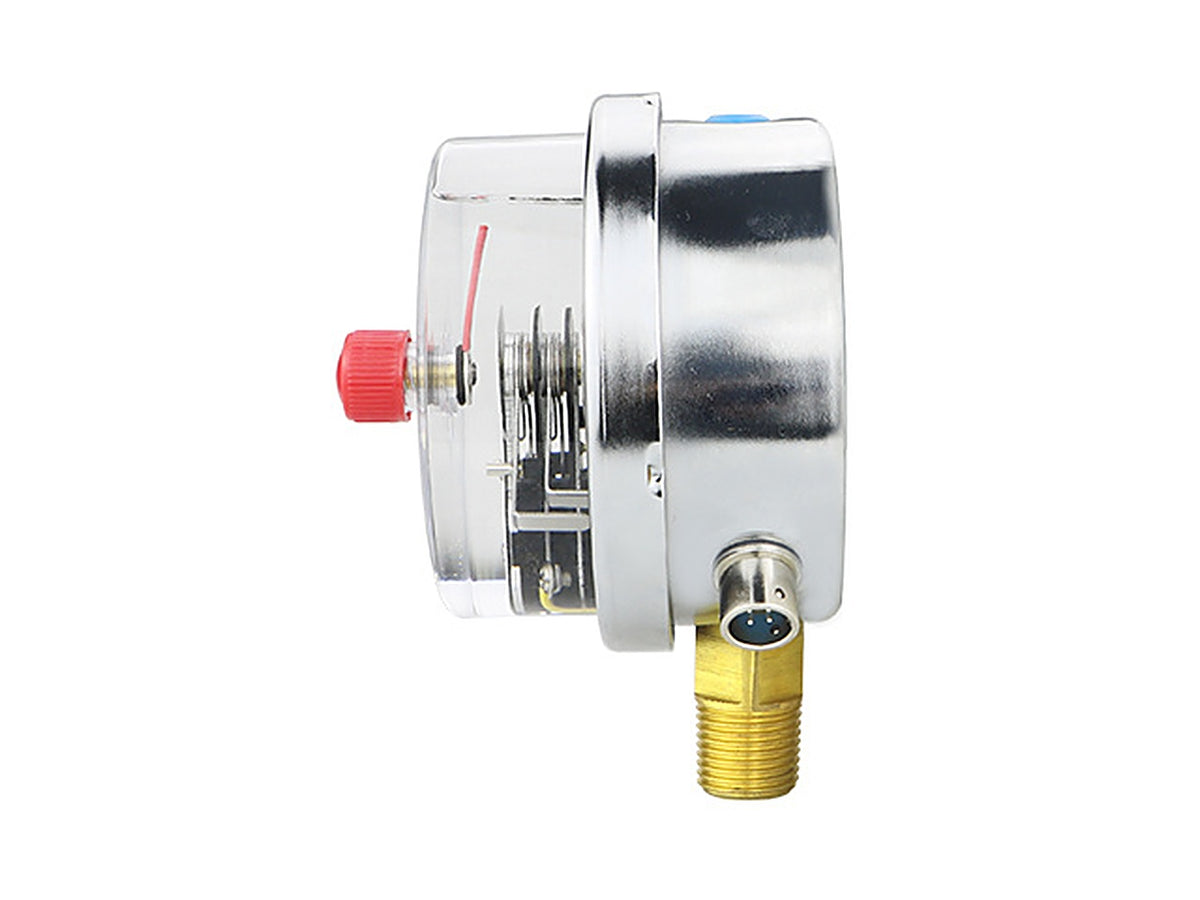

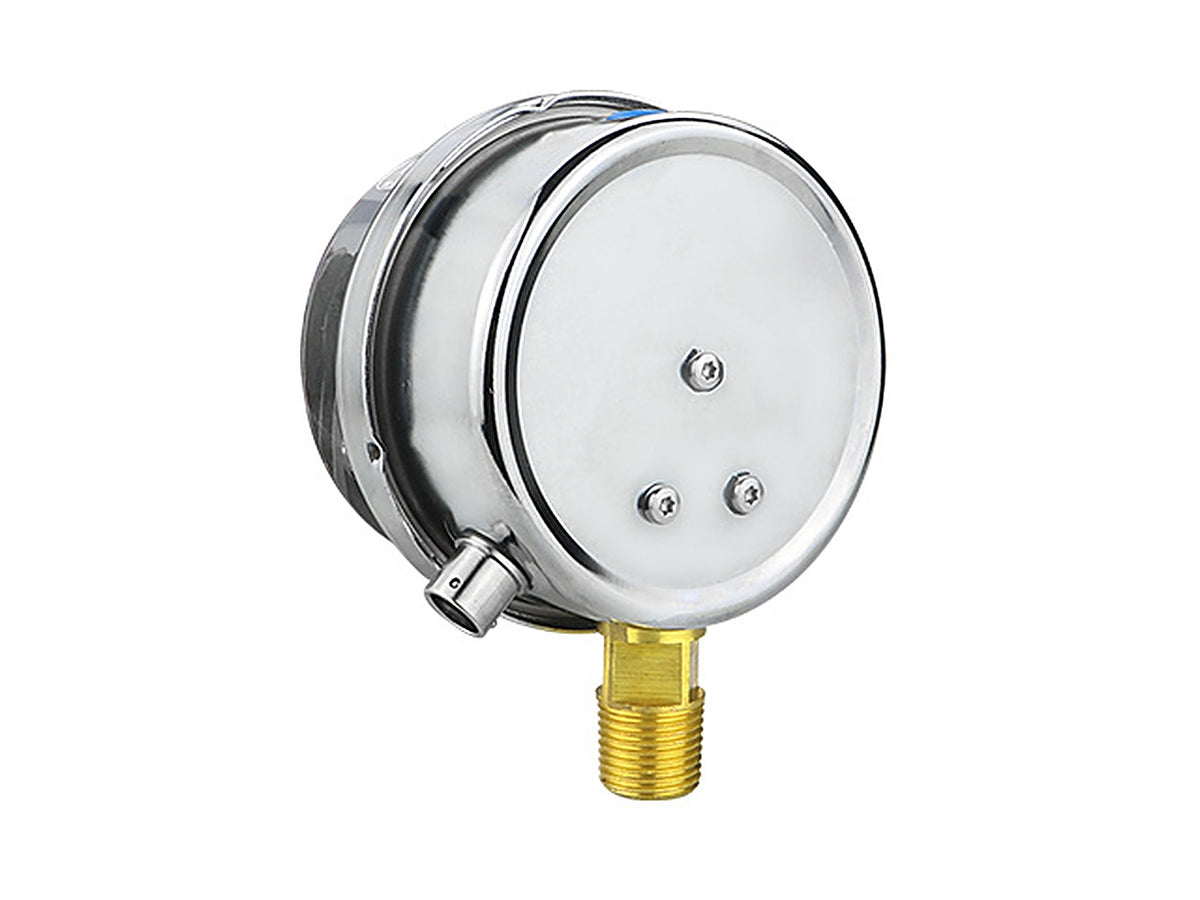

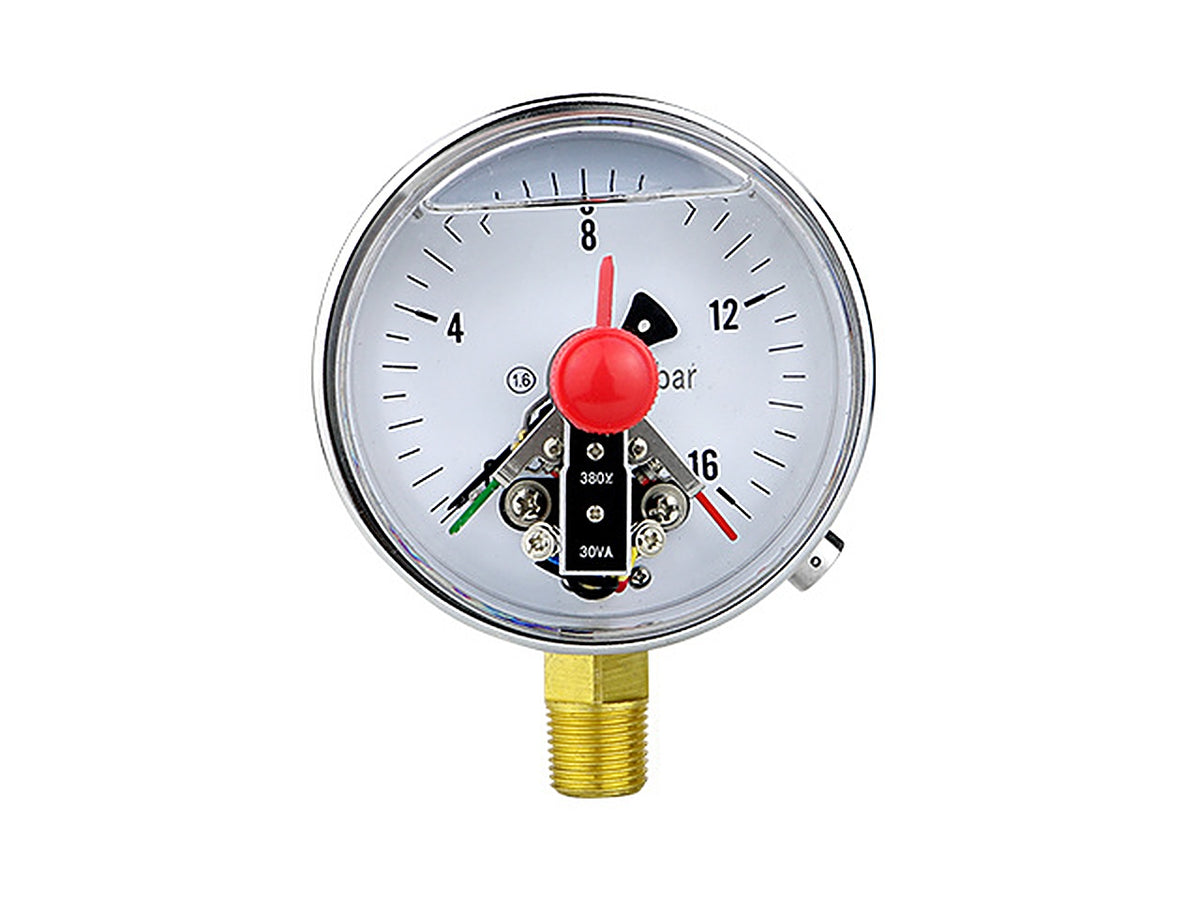

Free Custom Dial Printing: Add your company logo, brand name, custom scale, or specialized alarm set points at zero extra cost. The Gaugwise YNXC100 is an industrial 100mm electric contact pressure gauge featuring built-in adjustable upper and lower electrical limit contacts, engineered for process engineers, facility managers, and OEM automation builders requiring real-time on-site pressure indication and automated circuit control.
Technical Specifications
| Measurement Range | 0-0.1 to 0-6 MPa (5 standard ranges) |
| Dial Size | 100mm (4") |
| Contact Function | Adjustable upper and lower electric limit contacts (alarm / control) |
| Thread Connection | M20×1.5 / 1/2" NPT / G 1/2" (configurable BSP/NPT) |
| Accuracy | ±1.6% Full Scale |
| Case Material | Rugged industrial steel / alloy housing |
| Wetted Parts | Brass / copper alloy Bourdon tube and socket |
| Per-Piece Weight | Approx. 0.95 kg (pending packaging verification) |
| Origin & HS Code | China | HS Code: 9026.20 |
Industrial Applications
Ideal for boiler and pressure vessel pressure regulation, oil, gas, and petrochemical facilities, industrial pump control systems, alarm and interlock safety circuits, and automated process installations where reliable set-point alarms are required.
Procurement & Factory-Direct Trust
Sourced factory-direct under the Gaugwise brand, each instrument is made-to-order with an approximate 10 working days production lead time from a 1-piece minimum order quantity (MOQ). Benefit from tiered volume pricing, certified manufacturing, and complimentary custom dial printing. For customized contact ratings, special dial scales, or volume OEM inquiries, contact our engineering team or specify your requirements at checkout.
