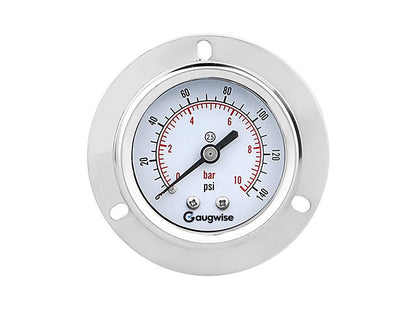

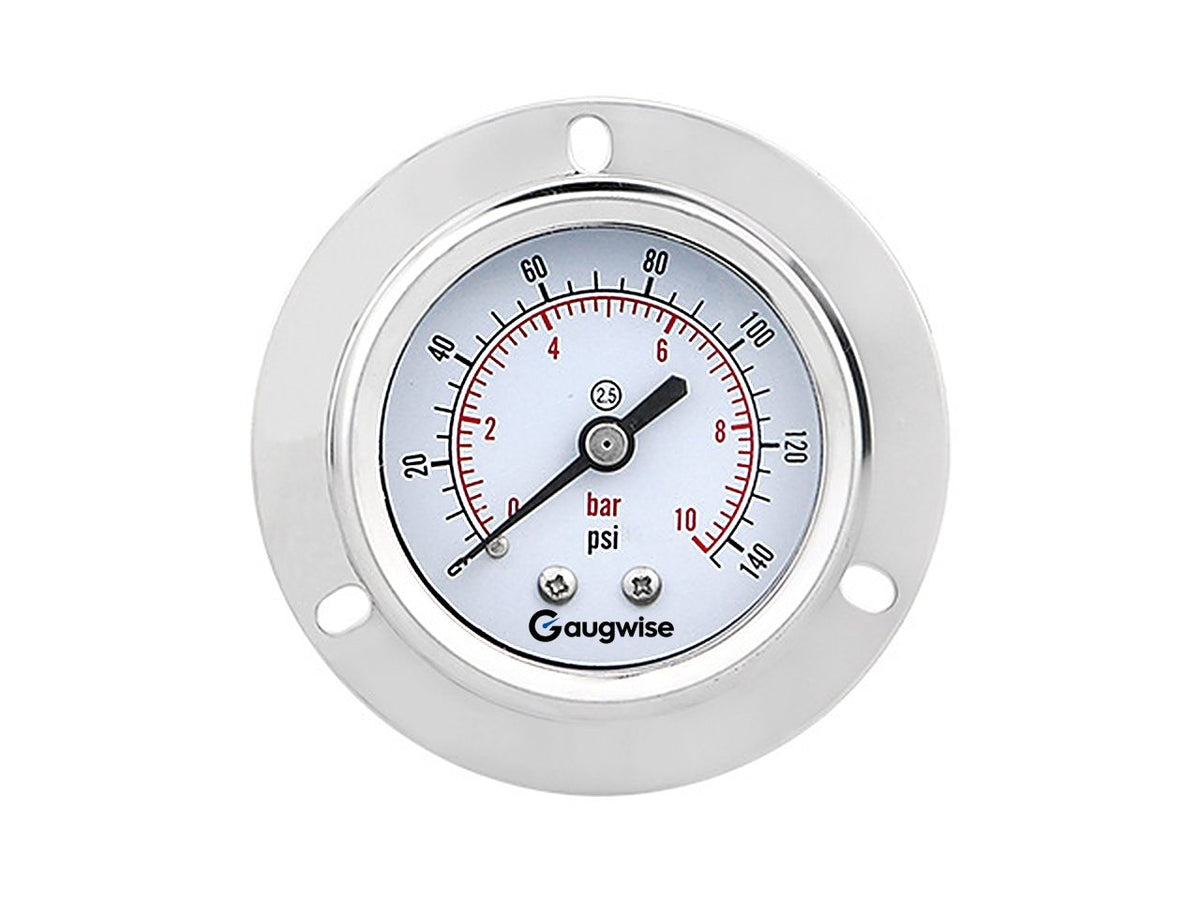

Gaugwise YN60ZT 60mm Oil-Filled Shock-Resistant Pressure Gauge
Gaugwise YN60ZT 60mm Oil-Filled Shock-Resistant Pressure Gauge
SKU:GW-YN60ZT-0-0.6MPa
Couldn't load pickup availability
Share
The Gaugwise YN60ZT is a compact 60mm oil-filled (glycerin) shock-resistant pressure gauge engineered for demanding machinery and pump installations where mechanical vibration and pressure pulsation are constant. Free custom dial printing is included on every order from a 1-piece MOQ—add your company logo, custom branding, or application-specific scale markings at no additional cost (specify at checkout or message our team).
Technical Specifications
| Model | YN60ZT (with bayonet ring, bottom or center-back mount) |
| Dial Diameter | 60 mm (nominal) |
| Measurement Range | 0–0.6 MPa, 0–1.0 MPa, 0–1.6 MPa, 0–2.5 MPa, 0–6.0 MPa |
| Accuracy Class | ±2.5% Full Scale |
| Damping Fluid | Glycerin-filled (anti-vibration & pointer stabilization) |
| Wetted Parts | Brass / copper alloy |
| Case & Bezel | Stainless steel case with bayonet ring (locating pin) |
| Process Connection | M14×1.5 / 1/4" NPT / G 1/4" (configurable; bottom or center-back mount) |
| Single-Unit Weight | Approx. 0.25 kg |
| Country of Origin / HS Code | China / 9026.20 |
Applications
- Hydraulic power units, fluid circulation, and pneumatic systems
- Reciprocating pumps, industrial air compressors, and motors
- Machine tools, stamping presses, and injection molding equipment
- Vibration-prone industrial machinery and space-constrained instrument panels
Procurement & OEM Support
Engineered directly by Gaugwise for factory-direct reliability. All units are made-to-order with a standard lead time of approximately 10 working days. Tiered volume pricing is automatically applied at checkout. Need custom dial layouts, specialized threads, or container-quantity supply? Contact our engineering sales team for quick B2B quotation.
