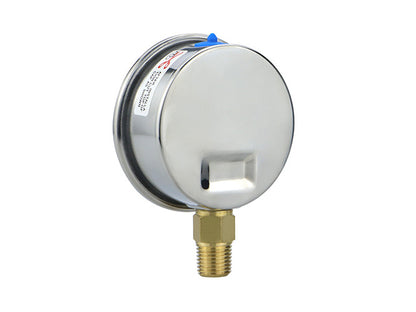

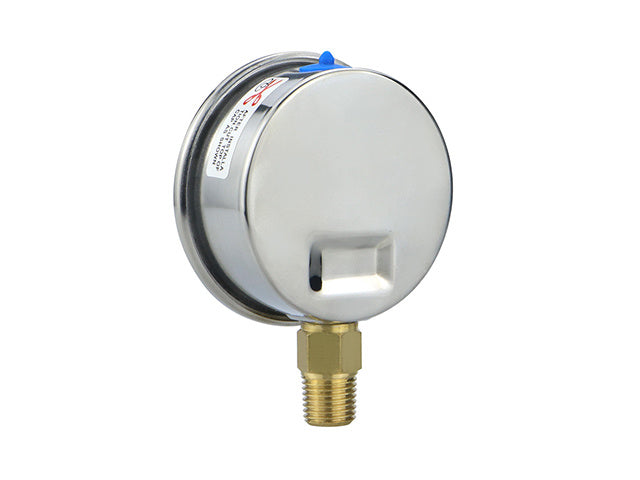

GaugWise YN60 60mm Glycerin-Filled Gauge

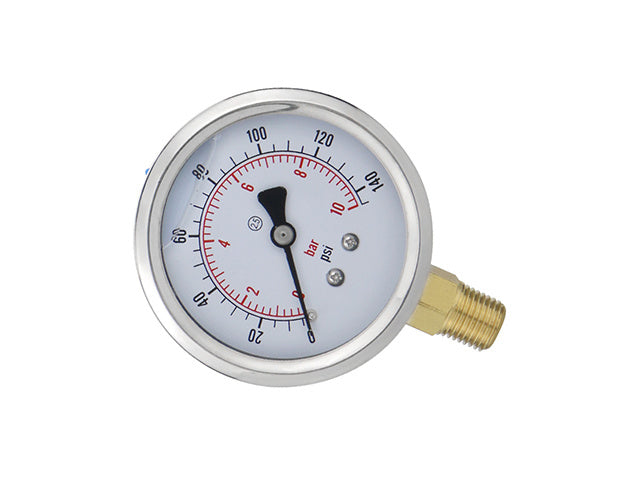

Free Custom Dial Face Printing: Every Gaugwise YN60 pressure gauge includes complimentary custom dial printing with no minimum order penalty. Incorporate your corporate logo, custom brand lettering, or select between standard single-scale MPa graduations and high-visibility dual-range bar/psi markings (black and red two-color layout engineered for North American systems) at zero added cost.

The Gaugwise YN60 is an oil-filled 60mm industrial pressure gauge engineered specifically for high-vibration and severe pulsation operating environments. Filled with high-purity glycerin liquid, it stabilizes pointer movement, dampens mechanical shock, and lubricates the internal mechanism to eliminate needle flutter on heavy-duty hydraulic pumps, industrial air compressors, machine tools, and slurry pumping skids.

Technical Specifications:

• Model & Dial: YN60, 60mm diameter with glycerin dampening fluid
• Mounting & Connection: Radial back mount; configurable M14×1.5 or G 1/4
• Accuracy: ±2.5% Full Scale
• Materials: 304 Stainless steel liquid-filled case; brass / copper alloy Bourdon tube wetted parts (stainless wetted option available)
• Production & MOQ: Made-to-order from 1 piece; ~10 working days production lead time

Frequently Asked Questions

What is the dial size and connection configuration for the YN60? It features a compact 60mm dial with radial back mounting, configurable in standard M14×1.5 or G 1/4 threads.

Can we order custom dual-scale dials with our corporate logo? Yes. Vector logo printing and dual bar/psi or single MPa scales are provided free of charge from a 1-piece MOQ.

What is the standard manufacturing lead time? Every unit is built to order and factory-calibrated, typically dispatching within approximately 10 working days.
