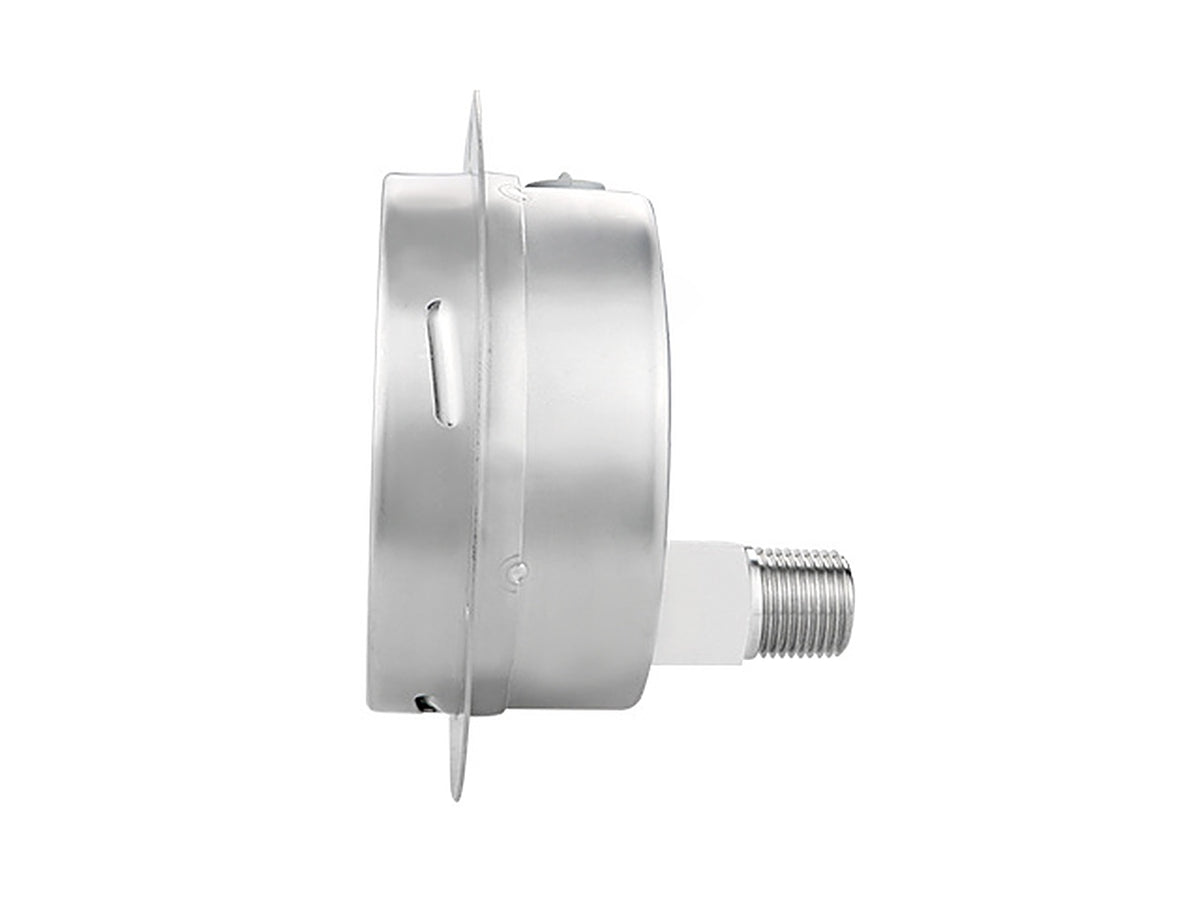

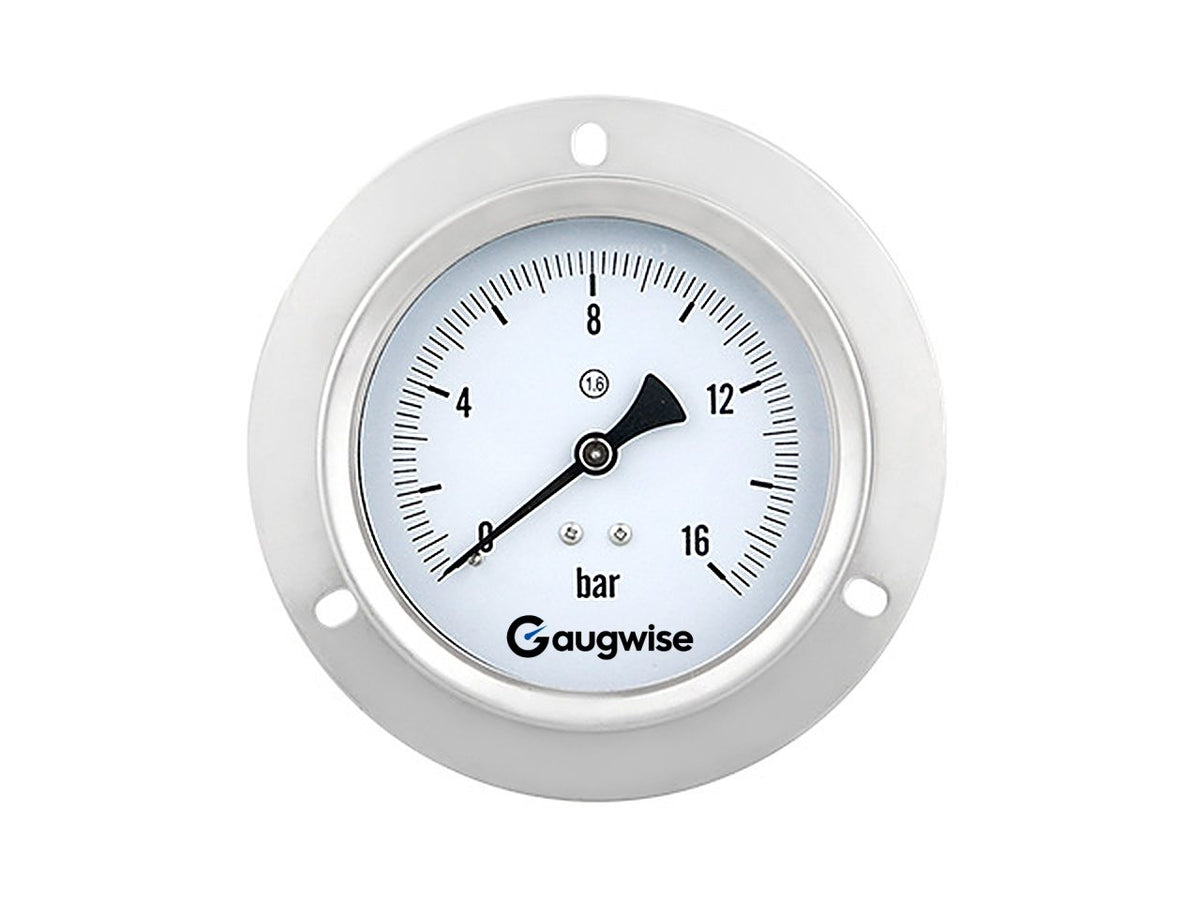

Gaugwise Y100ZTBF 100mm Stainless Back Flange Pressure Gauge
Gaugwise Y100ZTBF 100mm Stainless Back Flange Pressure Gauge
SKU:GW-Y100ZTBF-0-1MPa
Couldn't load pickup availability
Share
Free Custom Dial Printing: Add your company logo, brand name, custom scale, or specialized range markings at zero extra cost. The Gaugwise Y100ZTBF is a professional 100mm all-stainless-steel pressure gauge engineered with a bayonet locking ring, locating pin, center-back connection, and rear mounting flange, built specifically for process engineers and equipment builders requiring vibration-resistant, flush-mount panel installation in demanding environments.
Technical Specifications
| Dial Diameter | 100mm (4") |
| Measurement Range | 0-1 to 0-10 MPa (0-1, 0-1.6, 0-2.5, 0-6, 0-10 MPa) |
| Accuracy | ±1.6% Full Scale (typical) |

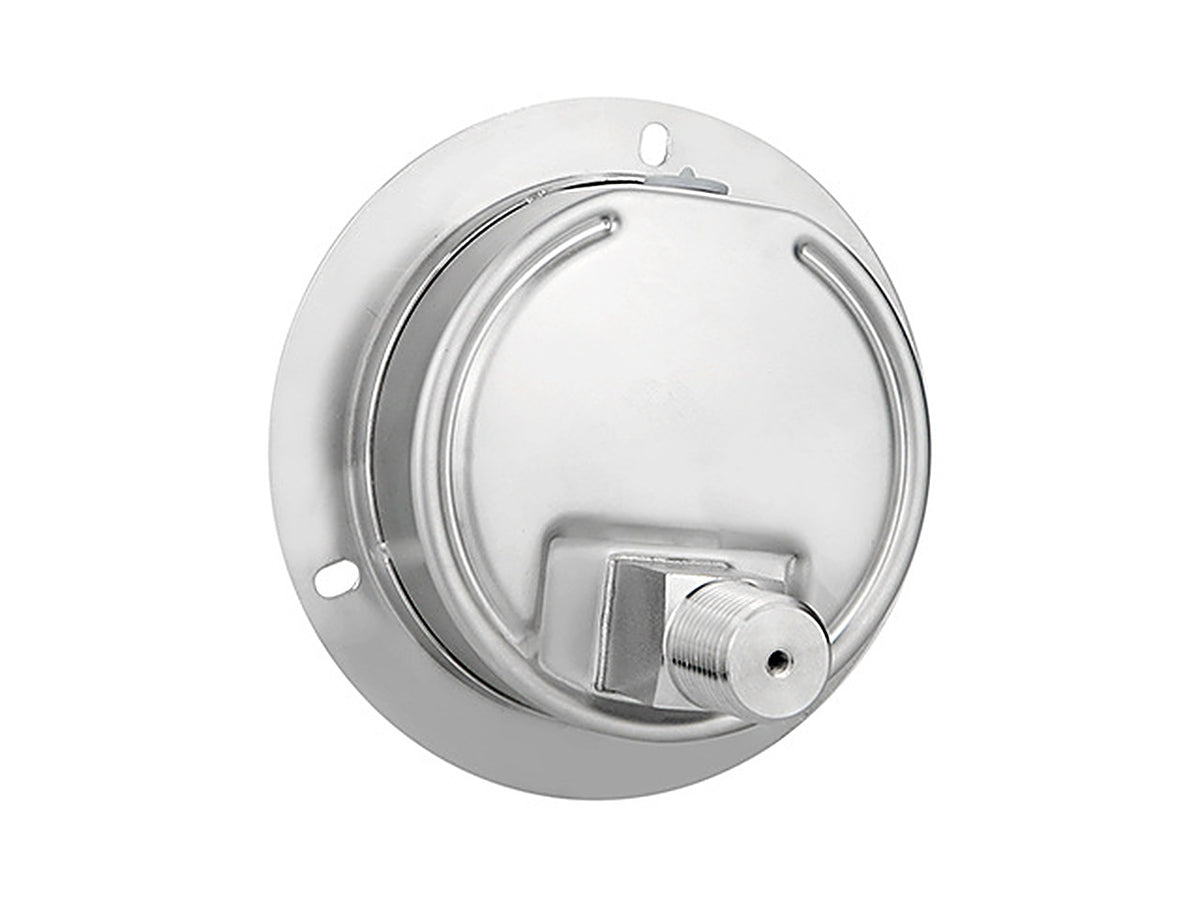

| Mounting & Bezel | Bayonet ring with locating pin (T), center-back mount with rear flange for flush panel installation |
| Thread Connection | M20×1.5 / G 1/2 / 1/2" NPT (configurable BSP/NPT) |
| Case Material | 304 Stainless Steel |
| Wetted Parts | 304 / 316L Stainless Steel Bourdon tube & socket |
| Lead Time & MOQ | MOQ 1 pc | Made-to-order (~10 working days lead time) |
| Origin & HS Code | China | HS Code: 9026.20 |
Industrial Applications
Designed for mission-critical installations, including chemical and petrochemical process plants handling corrosive media, marine and offshore vessels, food and beverage processing lines, pharmaceutical clean rooms, and control consoles or instrument boards where a secure bayonet locating pin is required.
Procurement & Factory-Direct Trust
Direct from Gaugwise manufacturing, each Y100ZTBF gauge offers all-stainless structural integrity, precision indication, and firm bayonet panel fixation with tiered volume pricing from 1 piece. Every order includes complimentary custom dial printing—specify your logo and scale requirements during checkout or contact our engineering desk for custom OEM specifications.
