Gaugwise Y100BF 100mm Corrosion-Resistant Stainless Radial Pressure Gauge

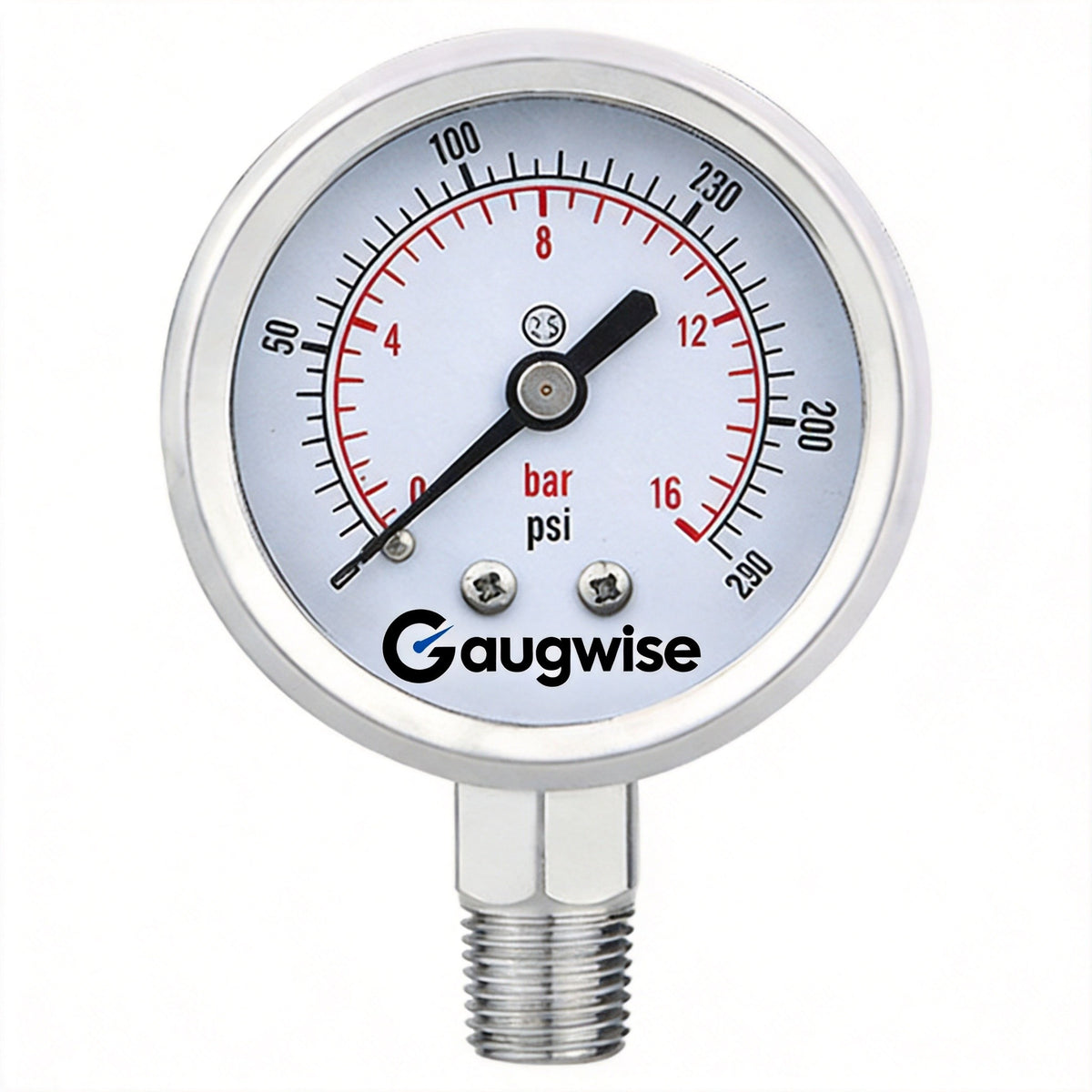

Complimentary Custom Dial Customization: Every Gaugwise Y100BF pressure gauge includes free custom dial printing with no minimum order surcharge. Add your corporate logo, custom measurement scales, specific operating zones, or select standard single-range MPa or dual-scale bar/psi markings (high-contrast black and red scale optimized for North American operations) at zero extra cost.

The Gaugwise Y100BF is an all-stainless steel radial pressure gauge engineered for aggressive environments across chemical, food processing, pharmaceutical, marine, and process industries. Built with a 100mm dial and robust 304 stainless steel casing with 304/316L wetted parts, it provides ±1.6% F.S. accuracy and dependable corrosion resistance under demanding media conditions.

Technical Specifications:

• Model & Dial: Y100BF, 100mm diameter

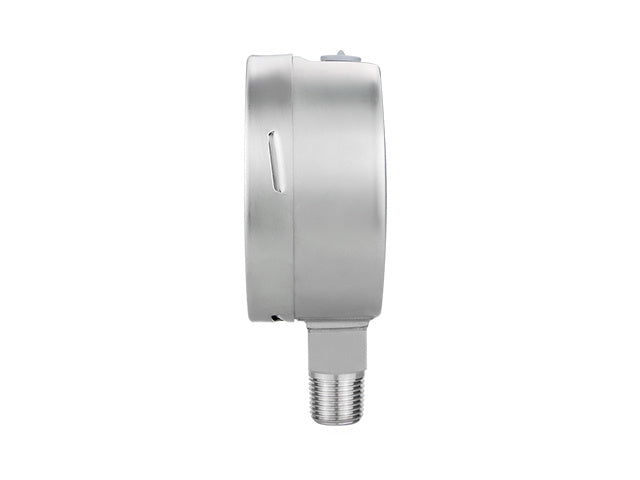

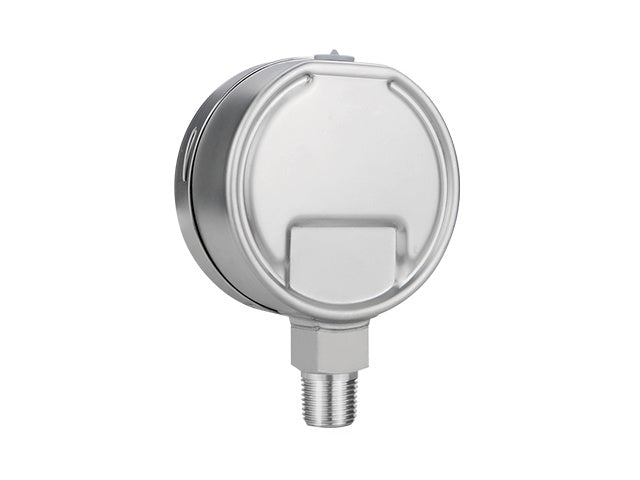

• Mounting & Connection: Radial back mount; configurable M20×1.5, 1/2" NPT, or G 1/2"
• Accuracy: ±1.6% Full Scale
• Materials: 304 Stainless steel case; 304/316L wetted parts
• Production & MOQ: Made-to-order from 1 piece; ~10 working days lead time

FAQ

What connection thread sizes are available? Standard production offers configurable M20×1.5, 1/2" NPT, or G 1/2" connections to fit international process plumbing.

How does the free custom dial printing service work? After ordering, you can provide your vector logo, specialized pressure ranges, or dual-unit requirements (such as bar/psi). We print custom dials on all orders down to a 1-piece MOQ at no additional charge.

What is the manufacturing lead time for made-to-order units? Standard production is completed and dispatched in approximately 10 working days.
