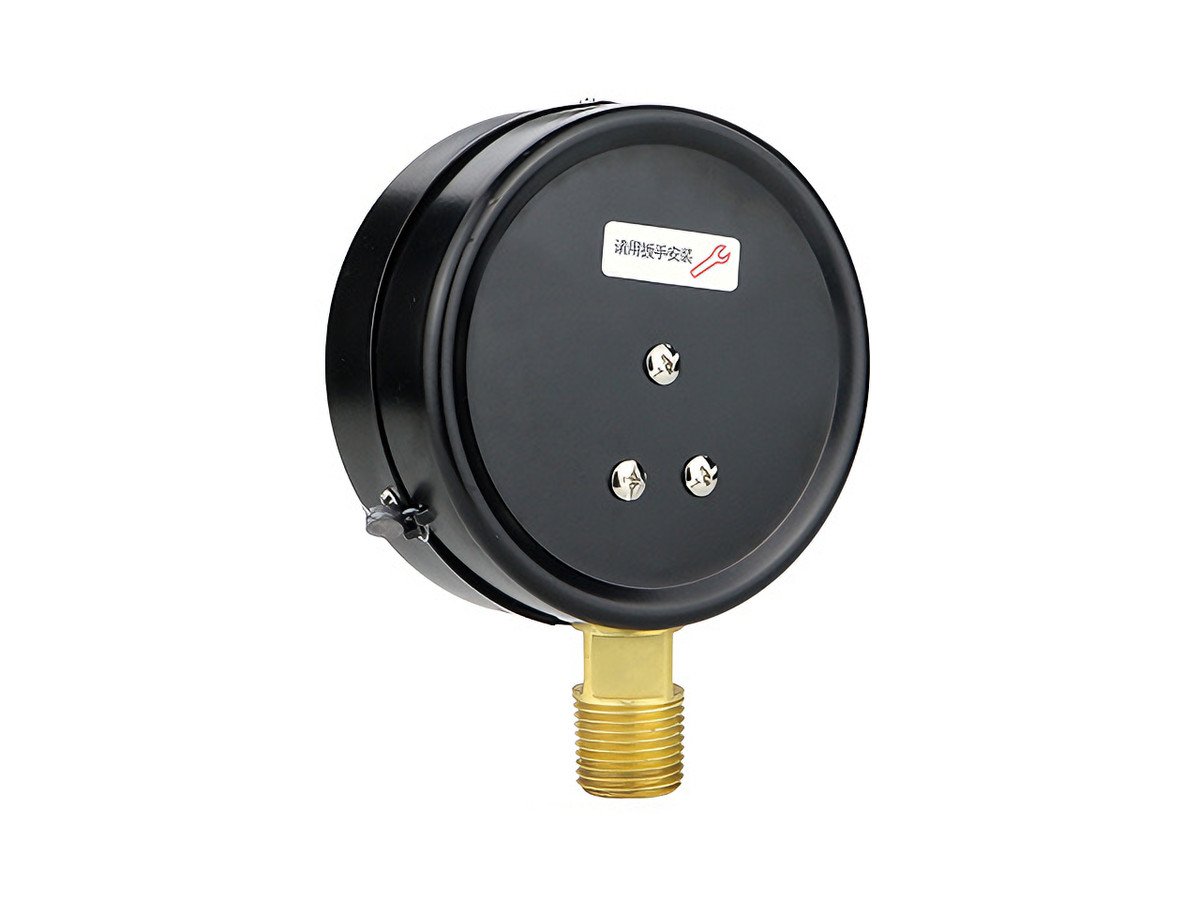

Gaugwise Y100 100mm 0-1MPa General Purpose Pressure Gauge

The Gaugwise Y100 is a general purpose pressure gauge for routine industrial maintenance, OEM integration, and replacement. Featuring a painted black steel case and durable brass wetted parts, it offers an economical, reliable solution for industrial pressure monitoring. Free custom dial face design and logo printing are available upon request for tailored branding and specific scale graduations.

Specifications

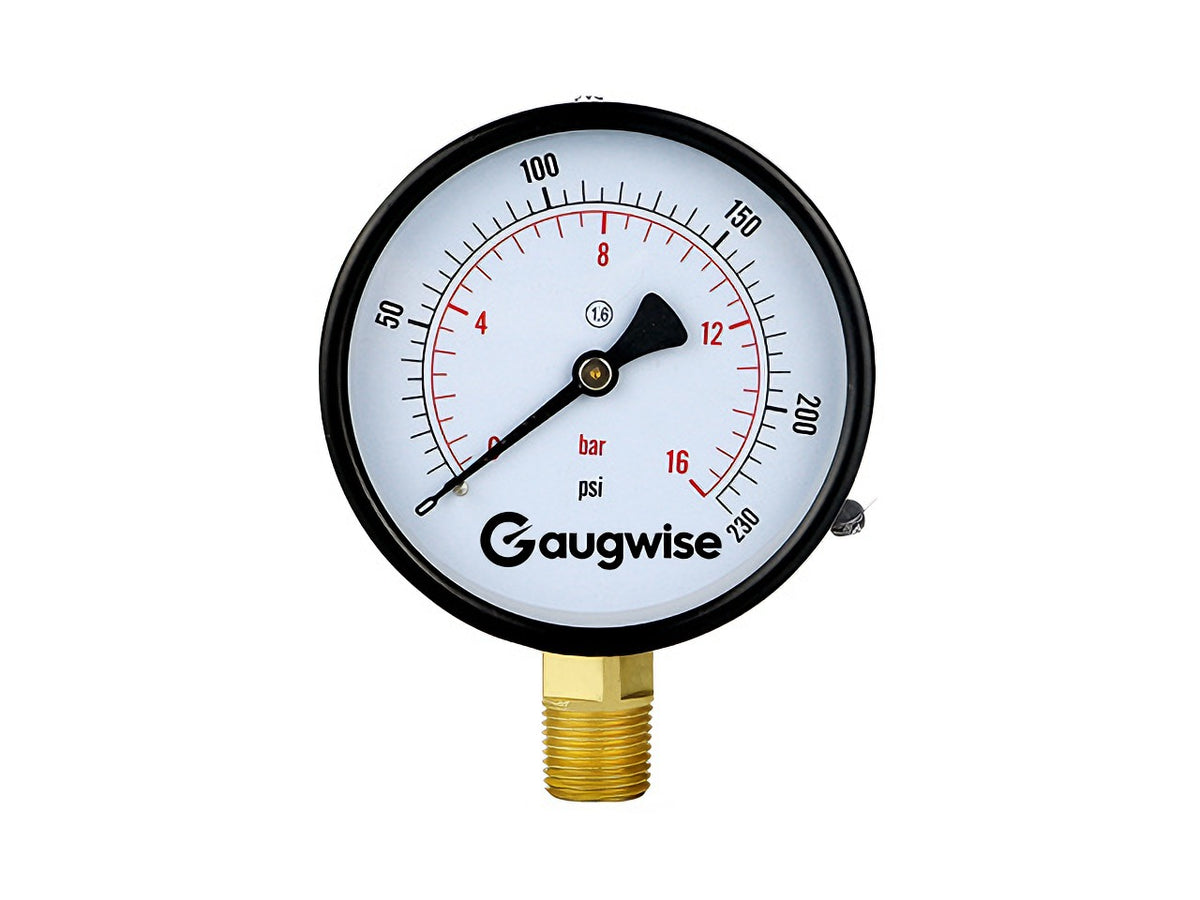

• Dial: 100 mm (free custom dial face & logo printing available)
• Default range: 0–1 MPa; configurable from 0–0.1 to 60 MPa, with vacuum or compound options
• Accuracy: ±1.6% F.S.

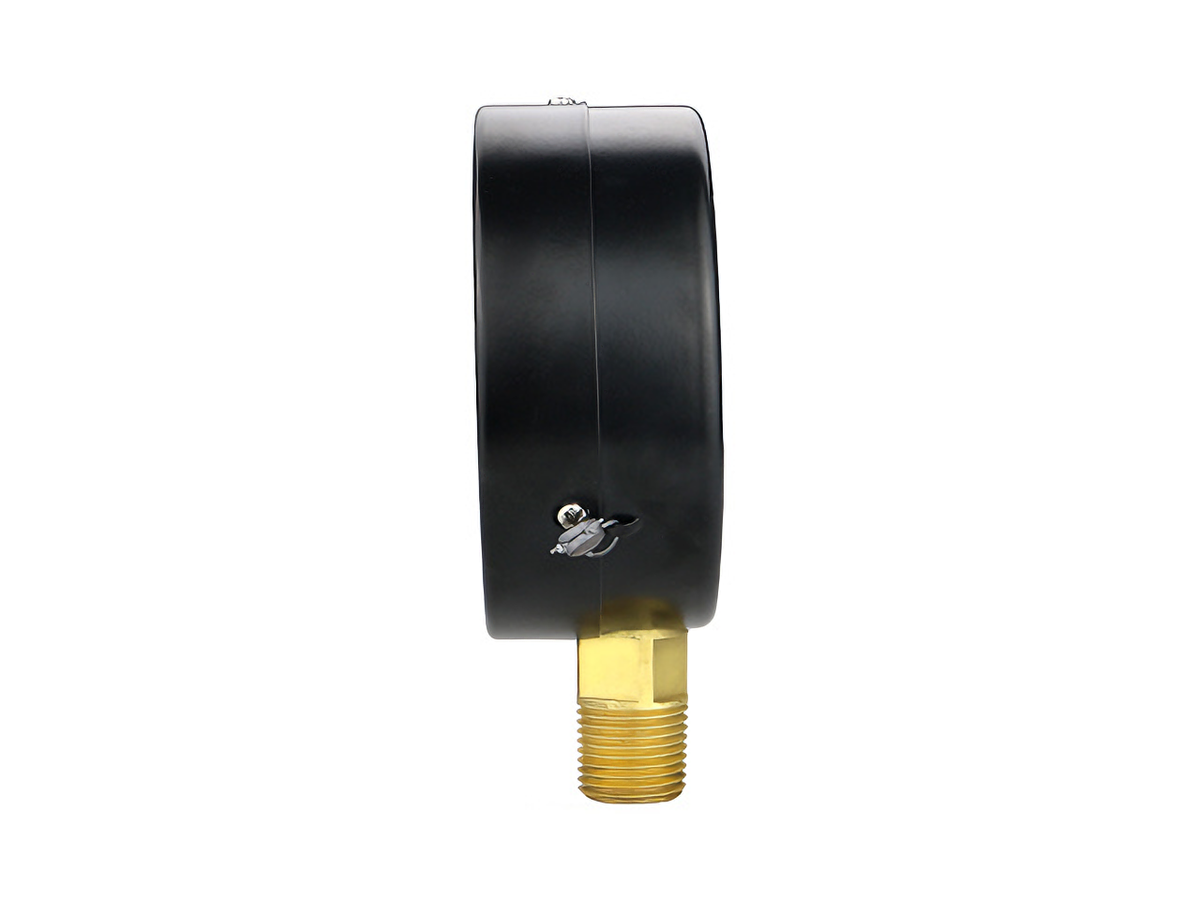

• Connection: configurable M20×1.5, 1/2 NPT, or G1/2
• Wetted parts: brass; case: painted black steel

Use the Y100 to monitor pressure on air compressors, pumps, boilers, hydraulic systems, and general process machinery. Select the required range and threaded connection to match your installation requirements.

Minimum order quantity is one piece. Each gauge is made to order with an approximate lead time of 10 working days. Contact our team to submit your custom dial markings or logo before ordering.

FAQ

Dial size? 100 mm. Custom dial? Free custom dial face design and company logo printing are available upon request. Connection? Configurable M20×1.5, 1/2 NPT, or G1/2. Lead time? Approximately 10 working days, made to order.
