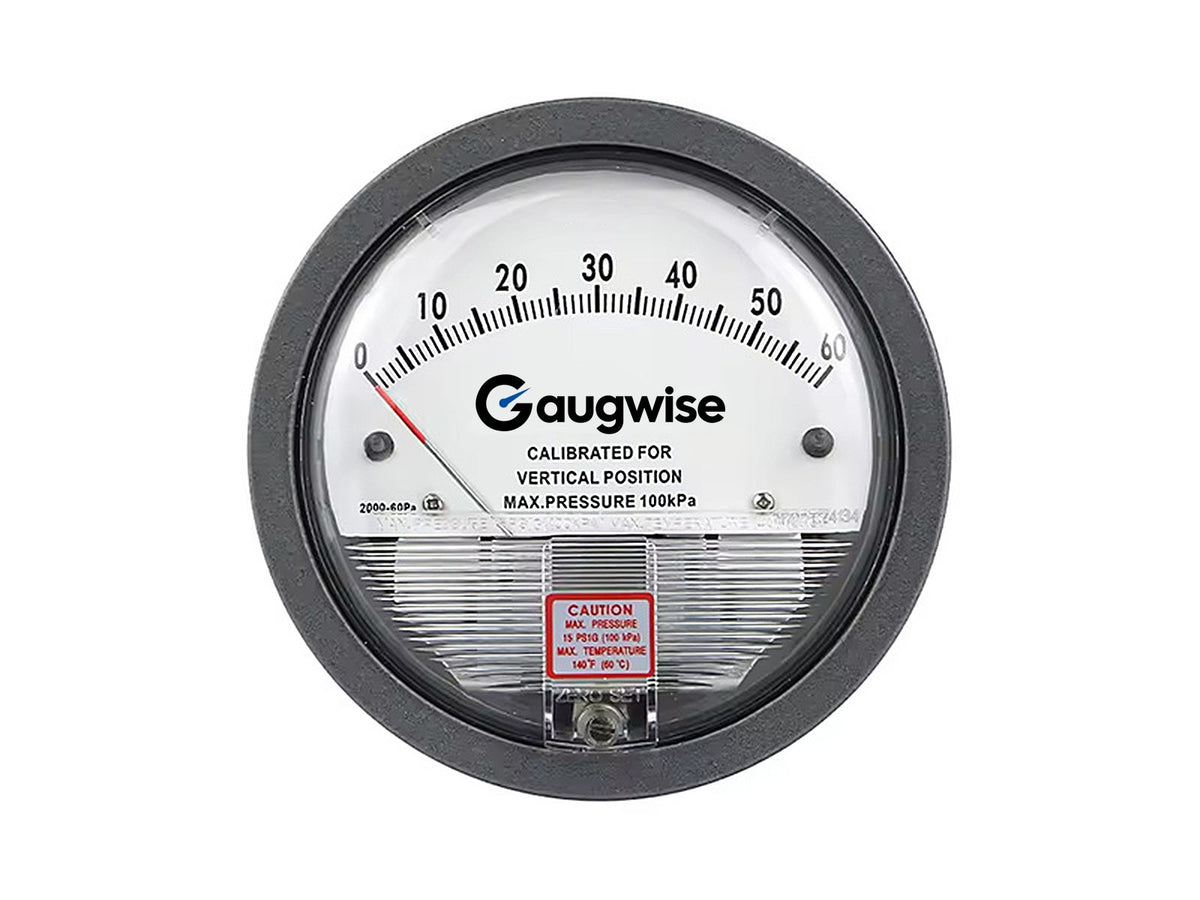

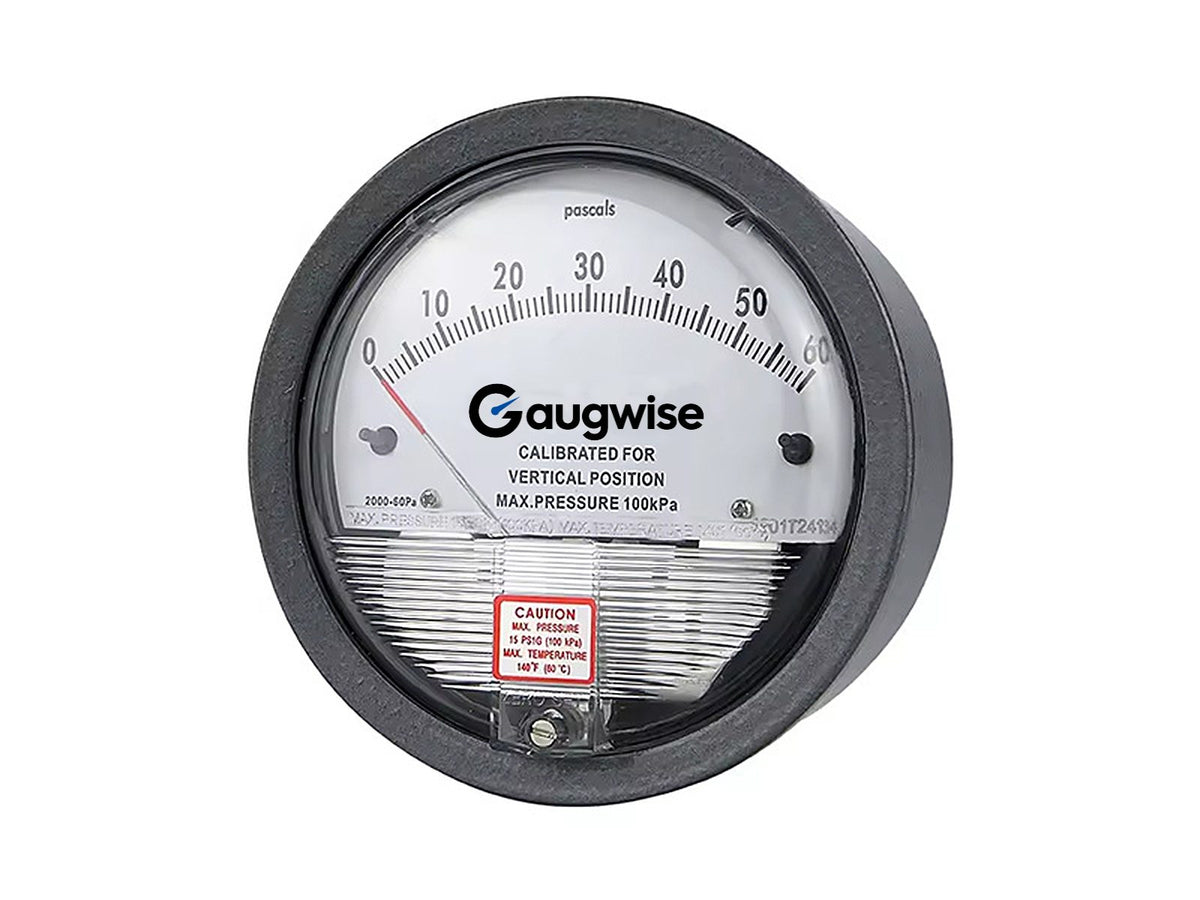

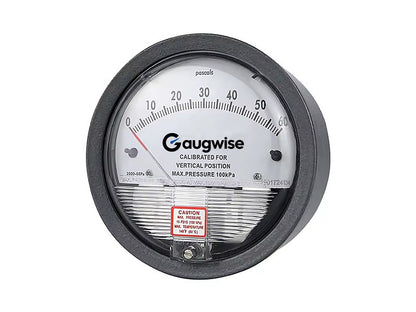

Gaugwise TE2000 Differential Pressure Gauge
Gaugwise TE2000 Differential Pressure Gauge
SKU:GW-TE2000-0-60kPa
Couldn't load pickup availability
Share
The Gaugwise TE2000 is an industrial differential pressure gauge engineered to measure the precise pressure drop (Δp) between two process points across filters, pumps, and orifice flow elements. Free custom dial printing is included on every order from a 1-piece MOQ—add your corporate logo, custom Δp colored warning zones, or specialized unit scales at no additional cost (specify at checkout or message our team).
Technical Specifications
| Model | TE2000 (Differential Pressure Gauge) |
| Measurement Range | 0–60 kPa, 0–100 kPa, 0–250 kPa, 0–400 kPa, 0–600 kPa (Unit: kPa) |
| Accuracy Class | ±1.6% Full Scale (typical) |
| Operating Principle | Two-port differential sensing (High side & Low side) |
| Process Connections | Dual High/Low ports, configurable in 1/4" NPT or G 1/4" (manifold compatible) |
| Housing Material | Die-cast aluminum / industrial alloy casing |
| Single-Unit Weight | Approx. 0.50 kg |
| Country of Origin / HS Code | China / 9026.20 |
Applications
- Differential pressure monitoring across liquid strainers, bag filters, and cartridge elements
- Volumetric flow measurement and differential checks across orifice plates and venturis
- HVAC air handling, cleanroom pressure balancing, and pneumatic duct difference monitoring
- Hydraulic return-line filtration status and lube oil system condition auditing
- Industrial pump head drop detection and cavitating condition monitoring
Procurement & OEM Support
Engineered directly by Gaugwise for factory-direct reliability. All units are made-to-order with a standard lead time of approximately 10 working days. Tiered quantity discounts apply automatically at checkout. Need tailored differential ranges, 3-valve / 5-valve manifold packages, or private label dials? Contact our engineering sales team for direct B2B quotation.
