Stainless Steel Pressure Gauge Applications in Chemical, Food & Marine
Across aggressive process sectors, pressure measurement is never just about registering numbers on a dial; it is about sustaining plant safety, preventing costly fluid leaks, and avoiding premature instrumentation replacement. In chemical processing, sanitary food manufacturing, and offshore marine operations, specifying an industrial-grade stainless steel pressure gauge is not an optional equipment upgrade—it is a mandatory baseline engineering requirement. Understanding real-world stainless steel pressure gauge applications ensures facility engineers select the optimal metallurgical specifications, mounting geometries, and measurement ranges for their specific operating environments.
Why Corrosion Resistance Decides the Application
In standard utility lines, ambient air and clean water permit the use of basic painted carbon steel cases and copper alloy wetted internals. However, moving into chemical reactors, food processing washdown bays, or salt-laden coastal decks immediately subjects instrumentation to multi-vector corrosion.
Corrosion attacks industrial gauges from two distinct directions: externally from ambient atmospheres and internally from process media. External moisture, airborne chlorides, sulfur dioxide, and caustic chemical washdowns penetrate ordinary paint coatings, causing severe case blistering, structural flaking, and dial fogging. Internally, aggressive process media cause dezincification, pitting, and embrittlement of copper alloy Bourdon tubes, creating calibration drift, pointer lock-up, and catastrophic tube rupture. An all stainless gauge constructed with 304 stainless steel housing and 304/316L wetted elements eliminates these failure modes by maintaining an impermeable, self-healing passive chromium oxide layer across all exposed surfaces.
Chemical & Process Plants (Dosing Lines, Corrosive Media, Washdown Zones)
Chemical manufacturing facilities present some of the most punishing service duties in global industry. Acid dosing skids, solvent recovery loops, chlorination manifolds, and petrochemical refining lines continuously circulate fluids that rapidly degrade non-ferrous metals.
In these severe duties, deploying a stainless steel pressure gauge for chemical plant operations ensures complete chemical compatibility. The 316L stainless steel Bourdon tube and socket contain 2% to 3% molybdenum, providing superior resistance against chloride pitting, organic acids, and sulfur compounds. Furthermore, chemical plants frequently utilize centralized control panels, pump skids, and automated dosing cabinets. Standardizing on rugged 100mm stainless gauges with ±1.6% F.S. accuracy ensures operators can safely monitor line pressures from designated walkways, minimizing exposure to toxic or hazardous processing zones.
Food & Beverage (Hygiene, CIP/SIP Washdown, Wetted-Part Compatibility)
Sanitary processing in breweries, dairies, beverage bottling lines, and food packaging plants demands strict hygiene and uncompromising cleanability. Instrumentation in these facilities must endure high-pressure, high-temperature washdowns utilizing caustic detergents, nitric acid solutions, and hot steam sterilization (Clean-in-Place / Steam-in-Place cycles).
Ordinary gauges with painted or stamped metal cases easily chip and flake, creating severe physical and microbial contamination risks in sanitary food production areas. A food grade pressure gauge stainless steel solution solves this through smooth, electro-polished 304 stainless steel housings rated to IP65 ingress protection. The non-porous stainless exterior withstands repetitive chemical washdowns without corroding, staining, or harboring bacterial biofilm. Coupled with 316L wetted internals compatible with food-grade fluids and steam cleaning, stainless pressure gauges maintain sterile compliance while delivering dependable pressure readings.
Marine & Offshore (Salt Atmosphere, Humidity, Panel/Instrument Decks)
Offshore oil and gas platforms, commercial cargo vessels, naval craft, and coastal desalination facilities operate in continuous marine atmospheres characterized by elevated humidity, persistent ocean salt fog, and direct seawater spray.
Under marine atmospheric conditions, ordinary carbon steel can exhibit visible surface oxidation within days. Specifying a marine pressure gauge corrosion resistant design is critical for deck machinery, engine room fuel lines, seawater ballast manifolds, and hydraulic steering systems. The 304 stainless steel casing forms an enduring barrier against chloride-induced atmospheric oxidation, while 316L wetted parts tolerate seawater intake and hydraulic oil circulation. When installed on open deck panels or bridge consoles, all-stainless construction ensures decades of clear dial visibility and structural integrity against pounding wave spray and mechanical impact.
Mounting Options That Fit Each Site
Different processing environments demand specialized mechanical mounting configurations to secure the gauge against operational vibration, physical contact, and line turbulence.
- Center-Back Connection with Back Flange: For flush mounting in instrument consoles, machine panels, and central control cabinets, a back mounting process gauge configuration is the industrial standard. The rear threaded connection enters straight into internal manifold piping, while an integrated rear flange with perimeter mounting holes securely anchors the gauge against the panel faceplate.
- Bayonet Bezel Ring with Locating Pin (T): A bayonet ring panel gauge flush mount design provides crucial structural rigidity. The twist-lock bayonet ring firmly clamps the case, lens gasket, and dial assembly together, while an integrated locating pin prevents the gauge from rotating in high-vibration engine rooms or pulsating pump discharge panels.
- Standard Industrial Range Options: Metric MPa scales are standardized across 5 continuous process ranges: 0-1 MPa, 0-1.6 MPa, 0-2.5 MPa, 0-6 MPa, and 0-10 MPa. For stable service, normal operating pressure should sit between 30% and 75% of full scale.
- Process Connection Threads: Available in standardized M20×1.5 metric, parallel pipe G 1/2 (BSP), or tapered 1/2" NPT thread geometries to match diverse regional piping standards.
Below is an overview comparing typical stainless pressure gauge applications across major industries:
| Industry Sector | Primary Environmental Challenge | Recommended Case / Wetted Alloys | Preferred Mounting & Features |
|---|---|---|---|
| Chemical & Refining | Aggressive acids, solvents, airborne chemical vapors | 304 Case / 316L Wetted Parts | Panel flush mount or direct thread, chemical-resistant seals |
| Food & Beverage | Daily high-temperature CIP/SIP washdowns, caustic cleaners | 304 Case / 316L Wetted Parts | Smooth sanitary exterior, IP65 sealed case, non-flaking body |
| Marine & Offshore | Continuous salt spray, 100% relative humidity, deck vibration | 304 Case / 316L Wetted Parts | Bayonet locking ring, back flange flush mount, shock resistance |
| Water & Wastewater | Hydrogen sulfide gas, chlorine fumes, slurry pumping | 304 Case / 304/316L Wetted | Corrosion-resistant housing, wide dial for outdoor walk-by check |
The Gaugwise Y100ZTBF Example
When plant engineering specifications demand an optimal blend of vibration resistance, flush panel mounting, and full stainless metallurgy, the Gaugwise Y100ZTBF serves as the model standard.

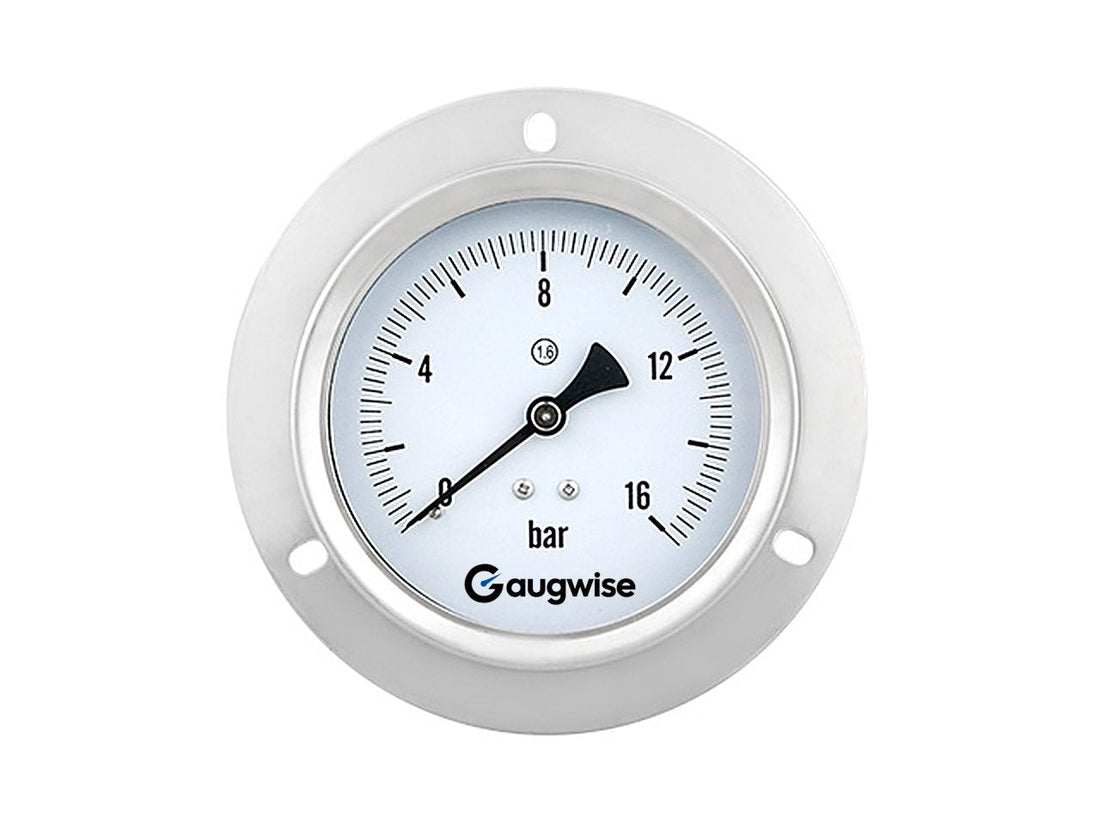

The Y100ZTBF incorporates a 100mm (4-inch) dial diameter housed in a rugged 304 stainless steel case, paired with a heavy-duty twist-lock bayonet ring and integrated locating pin (T). Process-wetted Bourdon tube components are engineered from corrosion-resistant 304/316L stainless steel, supporting 5 standardized MPa ranges from 0-1 to 0-10 MPa at ±1.6% F.S. accuracy.
Furthermore, Gaugwise supports engineering firms and system integrators with complimentary custom dial stainless steel pressure gauge OEM manufacturing. From custom company logos and brand typography to color-coded operating zones and customer-specified engineering scales, customized dials are produced with zero minimum order quantity surcharge on made-to-order units.
Choosing Among the Gaugwise Stainless Series
While the Y100ZTBF is optimized for panel flush mounting, process plants often require alternative physical configurations across diverse fluid headers and pressure regimes:
- Bottom (Radial) Direct Mounting: For piping headers, pumps, and field lines requiring vertical bottom-entry connections, the Y100BF series delivers identical 304/316L corrosion resistance in a direct-mount radial format.
- Center-Back Panel Mounting: For flush panels without a bayonet pin requirement, the standard Y100ZBF provides clean rear flange installation for general instrument boards.
- Ultra-Low Gas Pressures: For draft monitoring, burner pressure, or cleanroom differential measurement where pressures measure in low millibars or kilopascals rather than megapascals, engineers should deploy a stainless capsule micro pressure gauge engineered specifically for micro-pressure sensitivity.
Summary + Next Steps
Across chemical dosing, food processing washdown lines, and offshore marine installations, selecting the proper pressure gauge ensures continuous process safety and eliminates unnecessary replacement cycles. Evaluating environmental corrosion risks, choosing between 304 and 316L metallurgy, and selecting the right mechanical mounting structure are essential steps in designing a reliable fluid monitoring system.
Gaugwise manufactures high-durability stainless instruments directly for industrial procurement and engineering teams, backed by factory-direct pricing, fast made-to-order delivery, and customized dial labeling. To configure instruments for your facility or discuss volume requirements, request a custom quote from our technical sales team today.
Frequently Asked Questions (FAQ)
Why choose stainless over a painted pressure gauge?
An all-stainless gauge prevents external paint flaking and internal Bourdon tube corrosion, ensuring long-term measurement accuracy and fluid safety in aggressive chemical, washdown, or marine environments.
Which industries most need an all-stainless gauge?
Chemical processing plants, food and beverage manufacturing facilities, pharmaceutical cleanrooms, offshore marine installations, and industrial wastewater treatment systems require all-stainless construction.
What MPa range and connection should I order?
Select an MPa range that places your regular operating pressure within the middle third of the dial (between 30% and 75% of full scale), with M20×1.5, G 1/2, or 1/2" NPT threads to match your piping.
Can I get a custom dial with my logo on the Y100ZTBF?
Yes, Gaugwise provides complimentary custom dial printing—including corporate logos, custom scales, and specialized range markings—with zero minimum order quantity surcharge on all Y100ZTBF orders.
