How to Choose a Differential Pressure Gauge for HVAC & Filter Monitoring
Differential pressure measures the drop in pressure between two points across an air duct, process pipe, or filtration barrier. In commercial ventilation and process piping, continuous filter differential pressure monitoring prevents downtime, protects blower motors, and ensures air hygiene standards. Choosing the right differential pressure gauge allows plant engineers and operators to spot filter loading early, schedule changeouts accurately, and eliminate airflow restrictions across critical air handling units.
What Is a Differential Pressure Gauge (Δp, Two-Port Principle)
A differential pressure gauge, frequently called a delta p gauge, measures the variance between two pressure sources rather than referencing ambient atmospheric pressure. Standard pressure instruments use a single port and a vented reference chamber. By contrast, a two port differential pressure gauge incorporates dual isolated process connections: a high-pressure port (marked High or "+") and a low-pressure port (marked Low or "-").
Inside the housing, an elastic sensing element, such as a flexible elastomer diaphragm or capsule assembly, separates both pressure chambers. When media enters both ports, the diaphragm deflects in direct proportion to the pressure difference. A frictionless magnetic linkage or calibrated gear movement transfers this displacement smoothly to the front pointer.
Because pointer movement depends solely on relative differential, identical static line pressure applied to both ports cancels out completely. This engineering design makes the differential pressure gauge for filters ideal for detecting microscopic resistance shifts across particulate filters, baghouses, and laminar flow hoods without distortion from baseline operating pressure.
Why Monitor Filter & Line Differential Pressure
In heating, ventilation, and air conditioning systems, filters accumulate particulate matter and airborne dust during normal operation. As particulate cakes against the filter medium, the open cross-sectional area contracts, increasing resistance to airflow. Understanding how to measure pressure drop across a filter provides maintenance teams with objective operational data rather than relying on arbitrary calendar schedules.
Operating air handling equipment with clogged filters introduces severe operational penalties. Blower fans draw increased electrical current to push air through restricted media, raising utility costs. In severe scenarios, elevated differential pressure deforms filter frames, tears media, or forces unfiltered bypass air around perimeter gaskets, contaminating cleanroom environments or precision electronics assembly spaces.
Installing a dedicated differential pressure gauge HVAC instrument allows technicians to log baseline clean resistance and establish replacement limits. Scheduled changeouts stabilize air turnover rates, prevent cooling coil icing, and maintain steady room pressurization across healthcare facilities, laboratories, and commercial complexes.
Key Specs to Compare
When selecting an instrument for airflow or fluid filtration setups, engineering teams must evaluate five essential mechanical and performance specifications:
- Measurement Range (kPa): Full-scale span must accommodate expected clean-to-dirty differential thresholds without pinning the pointer at maximum scale.
- Dual Process Ports: High and Low ports should feature standard 1/8" NPT, 1/4" NPT, or G1/4" threads to fit rigid tubing, barbed fittings, or test manifolds.
- Accuracy Classification: Industrial filter monitoring typically demands ±2% to ±3% full-scale accuracy at 21°C (70°F), ensuring reliable repeatability.
- Housing & Overpressure Rating: Die-cast aluminum or impact-resistant ABS enclosures with clear acrylic bezels protect internal diaphragms against static pressure surges up to 100 kPa.
- Mounting Adaptability: Enclosures should accommodate flush panel cutouts, surface wall mounting, or direct duct flange installations.
While mechanical dial gauges provide instantaneous visual readings without external power, facilities adopting supervisory control systems can install a digital pressure gauge alongside when remote 4-20mA data transmission or precision digital verification is needed.
Selecting the Right kPa Range & Ports
Selecting the appropriate kPa range is essential when configuring a differential pressure gauge for air filter monitoring. An excessively wide scale obscures subtle pressure rises during initial filter loading, while an undersized span causes over-ranging before the changeout threshold is reached.
For standard primary HVAC filters (MERV 8 to MERV 11), clean pressure drop typically ranges between 0.05 and 0.15 kPa, rising toward 0.25 to 0.50 kPa when dirty. HEPA filtration units operate at higher differentials, starting near 0.25 kPa clean and requiring replacement at 0.50 to 1.0 kPa. The table below outlines standard Gaugwise recommended kPa range configurations:
| Recommended Range | Standard Port Configuration | Typical Industrial Application | Baseline Clean Filter Drop |
|---|---|---|---|
| 0-60 kPa | Dual 1/4" NPT / G1/4" | Low-velocity HVAC pre-filters & cleanroom pressure control | 5 to 15 kPa |
| 0-100 kPa | Dual 1/4" NPT / G1/4" | AHU secondary pocket filters, bag filters & intake strainers | 15 to 35 kPa |
| 0-250 kPa | Dual 1/4" NPT / G1/4" | Multi-stage HEPA units & industrial dust collectors | 40 to 80 kPa |
| 0-400 kPa | Dual 1/4" NPT / G1/4" | High-velocity duct sections & gas line filter coalescers | 70 to 140 kPa |
| 0-600 kPa | Dual 1/4" NPT / G1/4" | Heavy industrial cartridge housings & return line filtration | 120 to 220 kPa |
All range options feature dual 1/4" NPT or G1/4" process connections on the rear and side, allowing straightforward piping or manifold integration.
The Gaugwise TE2000 Example

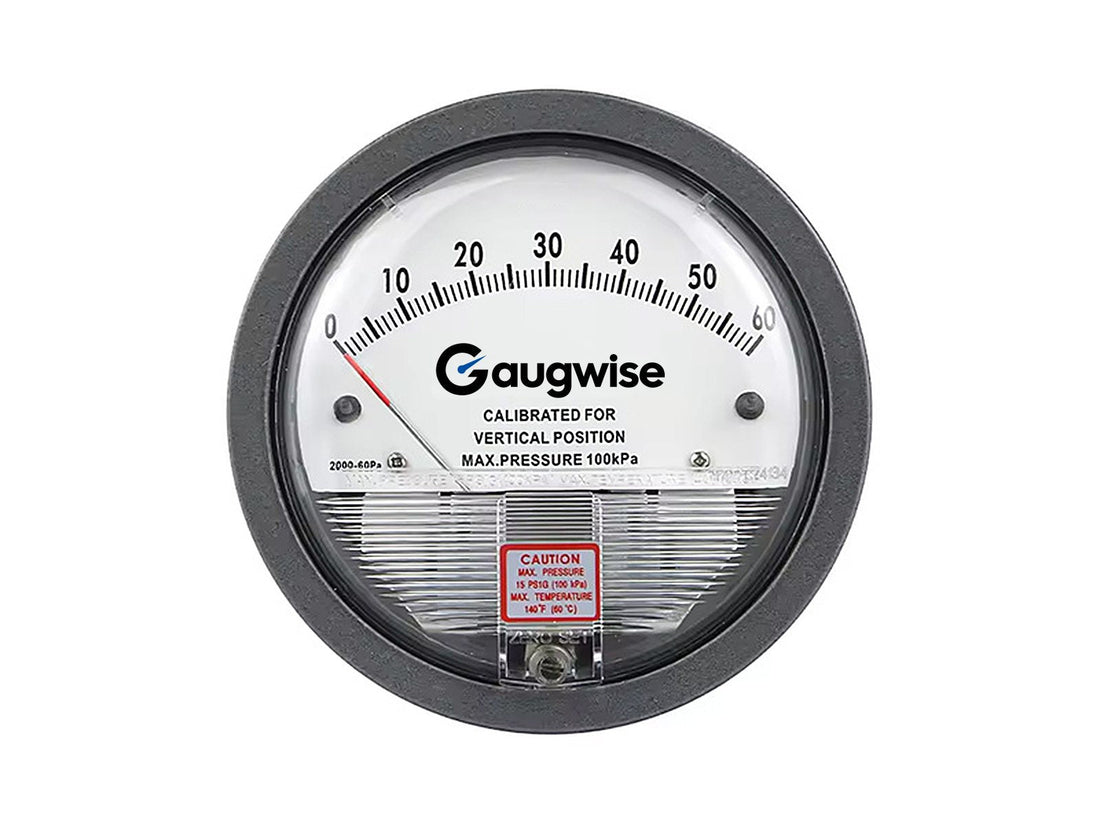

The Gaugwise TE2000 differential pressure gauge is our trusted mechanical instrument designed for low-pressure air, non-combustible gases, and duct filter monitoring. Engineered for HVAC contractors and process skid builders, the TE2000 pairs an elastomeric diaphragm with an internal magnetic helix mechanism. This frictionless movement prevents mechanical binding and ensures responsive pointer deflection even under turbulent duct flow.
Constructed with a rugged die-cast aluminum housing and UV-stabilized polycarbonate bezel, the TE2000 withstands tough plant conditions. A front-accessible zero-adjustment screw enables quick calibration in the field without disassembling the housing or disconnecting tubing. The gauge supports both surface wall bracket mounting and flush panel cutouts.
As an industrial differential pressure gauge manufacturer, Gaugwise offers a dedicated request a custom quote option for custom dial differential pressure gauge OEM requirements. We provide color-zoned dial sectors (green, yellow, red), custom pressure units, private-label branding, and application-specific ranges with low minimum order quantities.
Application Checklist for Process & Facility Engineers
Beyond standard ventilation ducts, differential pressure instrumentation serves vital monitoring functions across multiple industrial plant processes:
- Air Handling Units & Make-Up Air Systems: Continuous monitoring across pre-filters, carbon filters, and terminal HEPA diffusers ensures balanced air distribution.
- Liquid Basket Strainers & Pipeline Filters: Tracking differential pressure across cooling water strainers detects debris accumulation before pump cavitation occurs.
- Orifice Plates & Venturi Tubes: Measuring differential pressure across calibrated restrictions allows accurate estimation of air and gas flow velocities.
- Hydraulic Return Lines & Lube Oil Skids: Monitoring cartridge elements verifies fluid cleanliness and prevents internal bypass valves from recirculating contaminants.
- Centrifugal Pump Head Monitoring: Comparing suction and discharge line pressures verifies impeller performance and highlights suction line restrictions.
Deploying an HVAC differential pressure gauge kPa unit across these inspection points delivers actionable predictive maintenance data, extending equipment lifespan and cutting operating overhead.
Summary & Next Steps
Selecting the right differential pressure gauge requires matching the kPa scale to operational limits, choosing durable port connections, and ensuring clear dial legibility. For ventilation systems, cleanrooms, and industrial filter banks, the Gaugwise TE2000 provides dependable accuracy, versatile mounting options, and custom dial flexibility for OEM machinery builders.
Whether you require standard replacement gauges for upcoming facility turnarounds or customized private-label instruments for equipment skids, our engineering team provides full technical guidance and rapid order dispatch. Review the TE2000 specifications or reach out directly to discuss your process parameters.
Frequently Asked Questions
What is differential pressure and how is it measured?
Differential pressure is the variance between two distinct pressure points, measured by applying both pressures to opposing sides of an internal sensing diaphragm.
What kPa range should I choose for filter monitoring?
Select a gauge where the dirty filter replacement setpoint falls between 50% and 75% of full scale, typically 0-60 kPa for pre-filters and 0-100 or 0-250 kPa for multi-stage units.
Can a differential gauge be used on liquids and air?
Standard differential instruments like the TE2000 are engineered for clean air and non-combustible gases; liquid applications require stainless steel wetted parts or compatible liquid-rated seals.
Can I get a custom dial with my logo on the TE2000?
Yes, Gaugwise provides custom dial printing services including OEM branding, dual scales, and color-coded warning sectors with low minimum order quantities.
