How to Choose a Compact Oil Filled Pressure Gauge for Vibration Duties

Compact machine cabinets, portable hydraulic power packs, and mobile compressor skids often leave little space for bulky instrumentation while exposing components to intense mechanical vibration. Choosing a rugged compact oil filled pressure gauge allows mechanical designers to fit clear pressure monitoring into dense control consoles without sacrificing durability, protecting internal movements from pointer oscillation and premature linkage fatigue under continuous operating shock.

Why Choose a 60mm Oil Filled (Glycerin) Gauge

In modern industrial machinery, control panels and hydraulic power units are becoming increasingly streamlined. Heavy 100mm or 150mm instruments frequently prove too large for compact equipment footprints or dense operator consoles. A 60mm dial provides an optimal balance between clear visual legibility from typical working distances and a compact physical footprint that fits tight panel cutouts.

However, small dry pressure gauges deployed directly on engine blocks, high-pressure pumps, or compressor manifolds often fail prematurely. Mechanical vibration causes the internal Bourdon tube, hairspring, and pinion movement to shake violently, leading to rapid tooth wear and reading drift. Installing a compact oil filled pressure gauge for machine panels dampens severe mechanical harmonics, stabilizes the needle, and provides constant lubrication to internal contact surfaces.

For operations with high ambient vibration or rapid pressure pulsing, a glycerin filled pressure gauge 60mm model prevents mechanical chatter, ensuring consistent reading reliability across thousands of operating hours in mobile plant environments.

The Bayonet Ring (Locating Pin) & Mounting Options

Mounting integrity is paramount when installing instruments on vibrating equipment. Many conventional low-cost gauges rely on friction press-fit bezels or crimped rings that can shift, leak filling fluid, or loosen when subjected to sustained multi-axis vibration. By contrast, a bayonet ring pressure gauge incorporates a secure mechanical locking bezel that prevents case separation.

In the YN60ZT configuration, an oil filled pressure gauge with bayonet ring features a rear-mounting flange with an integrated locating pin (bayonet positioning pin). This locating pin engages directly with a corresponding locating hole on the equipment panel face or mounting bracket, preventing the gauge body from spinning or backing off when process piping vibrates or during connection tightening.

Engineers can choose between direct central back-mount connections with a front retaining flange for flush panel cutouts, or bottom radial stem mounts for direct manifold block installation. The bayonet design also provides a tighter, more uniform seal against the front elastomeric gasket, preventing glycerin leakage and environmental dust ingress.

How Glycerin Filling Dampens Pointer Flutter in Small Panels

Pointer oscillation is the leading cause of misread pressures and operator error on vibrating machinery. When hydraulic pump ripples or reciprocating compressor pistons generate high-frequency pressure spikes, a dry gauge pointer swings erratically across several scale divisions, making accurate readings impossible.

The liquid filling—typically high-purity 99.7% industrial glycerin—completely submerges the Bourdon tube, movement, sector gear, and pointer axle. Because glycerin possesses high kinematic viscosity, it acts as a fluid damper, absorbing kinetic shock energy before it reaches the delicate gear teeth. This hydrodynamic resistance eliminates needle flutter and delivers a smooth, steady pressure indication.

Furthermore, the viscous liquid dampens rapid hydraulic pulsation without requiring restrictive external snubber fittings that often clog with particulate matter. The sealed liquid bath cushions delicate mechanical components, preventing gear wear and extending overall operational life on high-cycle mobile machinery.

Key Specs to Compare When Sizing Compact Gauges

When selecting a vibration resistant oil filled gauge small size configuration, instrumentation engineers should evaluate five core technical specifications:

• Dial Diameter (60mm): Ensures clear visibility while conserving precious instrument console real estate on mobile and stationary equipment.
• Standardized MPa Pressure Ranges: Full-scale span must align with normal operating pressures, keeping continuous working loads within the middle third of the scale.
• Accuracy Classification: Grade 1.6 or Grade 2.5 accuracy (±1.6% to ±2.5% of span) provides the precise resolution necessary for hydraulic and pneumatic monitoring.
• Wetted Materials: High-grade brass internals and process connections suit hydraulic oils and neutral gases, while 304/316 stainless steel housings withstand harsh ambient atmospheres.
• Process Connection Threads: Standard M14×1.5 metric threads, 1/4" NPT, or G1/4" (BSP) fittings match common manifold blocks and hydraulic test ports.

Where central control consoles or larger equipment packages require wider visibility from across a plant floor, engineering teams can specify a larger 100mm oil filled pressure gauge for heavy primary power stations while keeping 60mm gauges on compact local sub-panels.

Selecting the Right Range & Connection

Selecting the correct pressure scale is essential for instrument longevity. Pressure gauges should be sized so that standard operating pressure falls within 50% to 75% of maximum scale. Operating continuously near full scale stresses the internal Bourdon tube, while sizing too high diminishes reading precision.

For hydraulic power packs, lubrication skids, and industrial compressors, Gaugwise standardizes on 5 core MPa ranges. The table below outlines our recommended MPa oil filled gauge for hydraulic equipment configurations and their typical industrial duties:

Recommended Range	Standard Thread Options	Mounting Orientation	Typical Industrial Duty
0-0.6 MPa	M14×1.5, 1/4" NPT, G1/4"	Center Back (ZT) / Radial Bottom	Low-pressure pneumatic lines, lube oil loops & coolant delivery
0-1 MPa	M14×1.5, 1/4" NPT, G1/4"	Center Back (ZT) / Radial Bottom	Plant shop air headers, diaphragm pump supply & filtration skids
0-1.6 MPa	M14×1.5, 1/4" NPT, G1/4"	Center Back (ZT) / Radial Bottom	Rotary screw compressors, booster pumps & hydraulic return lines
0-2.5 MPa	M14×1.5, 1/4" NPT, G1/4"	Center Back (ZT) / Radial Bottom	Intermediate hydraulic pilot circuits & high-pressure gas regulators
0-6 MPa	M14×1.5, 1/4" NPT, G1/4"	Center Back (ZT) / Radial Bottom	Medium-pressure hydraulic power units & press clamping systems

The standardized center-back (ZT) mount with locating bayonet pin allows rapid panel insertion, while the radial bottom connection option facilitates direct manifold block mounting.

The Gaugwise YN60ZT Example

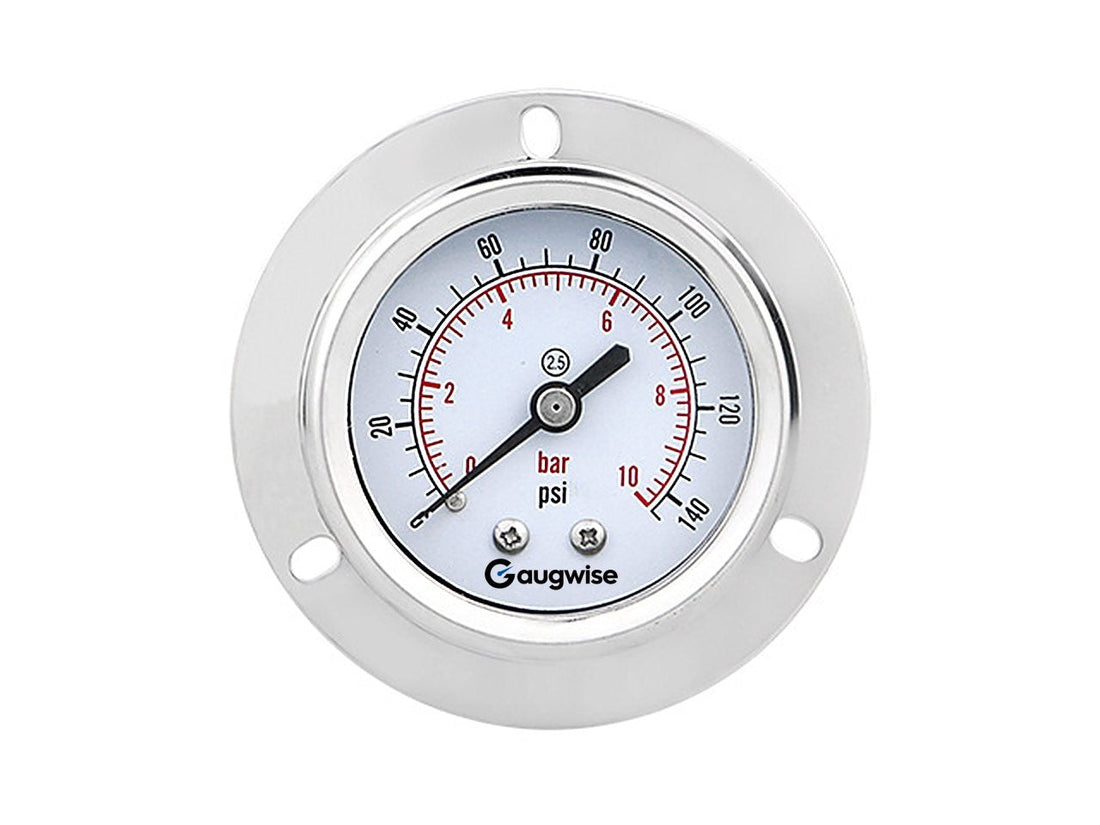

The Gaugwise YN60ZT represents our dedicated solution for space-restricted, high-vibration machinery. Engineered as an axial center-back mount instrument with a robust bayonet bezel and locating pin, the YN60ZT delivers rock-solid panel stability under continuous shock loads. The housing is pressed from polished stainless steel and sealed with high-elasticity NBR gaskets to ensure leak-free glycerin retention.

Internally, the YN60ZT features a precision-formed phosphor bronze Bourdon tube paired with an alloy copper movement, submerged entirely in clear pharmaceutical-grade glycerin. A built-in rear rubber pressure relief plug accommodates internal fluid expansion caused by operating temperature swings, preventing internal case overpressurization.

As a seasoned oil filled pressure gauge manufacturer, Gaugwise works directly with machinery builders and equipment integrators through our request a custom quote portal for custom dial oil filled pressure gauge OEM programs. We print custom dial faces featuring customer corporate branding, dual-scale psi/bar calibrations, application-specific color zones, and custom thread variations with no high minimum order quantities.

Application Checklist for OEM & Machine Designers

When engineering hydraulic skids or upgrading existing equipment subject to vibration, use the following operational checklist to verify gauge suitability:

• Hydraulic Power Units & Compact Skids: Direct pump discharge and accumulator circuit monitoring where motor vibration and rapid valve cycling cause pointer flutter.
• Mobile Construction & Agricultural Equipment: Console mounting on excavators, compact loaders, and harvesters exposed to continuous rough terrain shocks.
• Reciprocating Air & Gas Compressors: Inter-stage and final tank pressure monitoring where piston pulsation rapidly wears down dry mechanical movements.
• CNC Machine Tools & Lubrication Consoles: Spindle coolant pressure and automated slide lubrication monitoring inside tightly packaged machine enclosures.
• High-Pressure Washers & Water Jet Systems: Inline pressure verification where high-speed plunger pumps produce continuous harmonic vibration.

Specifying a 60mm glycerin filled pressure gauge ensures clear operational feedback for operators while protecting vital machine circuits against pressure loss or over-pressurization.

Summary & Next Steps

Selecting a compact oil filled pressure gauge involves matching the right dial diameter, choosing a suitable MPa scale, and ensuring robust mounting against vibration. The Gaugwise YN60ZT combines compact 60mm dimensions, protective glycerin filling, and secure bayonet pin mounting, making it an ideal instrument for demanding mechanical assemblies.

Whether you require standard stock gauges for scheduled machine maintenance or specialized OEM dials customized with your brand logo, our technical team provides rapid fulfillment and engineering support. Review the YN60ZT product details or get in touch today to explore your custom instrumentation requirements.

Frequently Asked Questions

Why fill a small pressure gauge with glycerin?
Glycerin filling lubricates internal movement gears and dampens violent pointer flutter caused by mechanical vibration and hydraulic pressure pulsation.

What does the bayonet ring (locating pin) do?
The bayonet locating pin locks into the machine panel to prevent the gauge body from spinning or loosening during vibration and piping installation.

What MPa range should I choose for a 60mm gauge?
Select a range where your normal operating pressure falls between 50% and 75% of full-scale value, such as 0-1.6 MPa for 1.0 MPa working systems.

Can I get a custom dial with my logo on the YN60ZT?
Yes, Gaugwise offers complete OEM custom dial printing services including brand logos, color-coded warning sectors, and custom pressure units.
