How to Choose an All-Stainless Steel Pressure Gauge for Corrosive Environments
Corrosive processing environments present an uncompromising challenge for plant instrumentation. From aggressive chemical dosing skids and acid vapor zones to offshore marine decks exposed to continuous salt spray, process engineers cannot afford gauge failure. When brass internals corrode or carbon steel cases rust through, the resulting leakage, unplanned downtime, and measurement drift jeopardize both safety and output. Installing an industrial-grade stainless steel pressure gauge ensures long-term operational integrity, mechanical protection, and reliable pressure monitoring across your entire fluid handling infrastructure.
Why Standard Painted Gauges Fail in Corrosive Duty
Standard commercial pressure gauges typically rely on mild carbon steel or stamped sheet metal cases coated with black enamel or powder paint, paired with brass or phosphor bronze internal wetted parts. In dry, neutral air or clean water lines, this construction is cost-effective and adequate. However, introducing corrosive chemicals, acid washdowns, ammonia vapors, or marine salt air quickly exposes the fatal limitations of painted carbon steel.
Over time, atmospheric moisture, temperature swings, and chemical vapors penetrate microscopic pinholes in the paint coating. Surface oxidation develops beneath the finish, causing bubbling, flaking, and structural degradation of the case. More critically, copper alloy and brass wetted components suffer rapid galvanic corrosion, stress corrosion cracking, and dezincification when exposed to aggressive process media. As the internal Bourdon tube corrodes, its wall thickness thins unpredictably, causing severe calibration drift, pointer sticking, and eventual tube rupture. When toxic or pressurized fluids escape through a compromised housing, the danger to operators and machinery is acute. Deploying an all stainless steel pressure gauge eliminates these vulnerabilities by providing full metallurgical resistance from the outside case to the innermost wetted elements.
Case & Wetted Parts Materials (304 vs 316L) and What to Match
Selecting the appropriate stainless steel alloy requires separating the instrument into two distinct zones: the external case housing and the internal process-wetted parts. Matching the right metallurgical grade to your specific operating conditions prevents over-engineering while guaranteeing service life.
Case Materials: A 304 stainless pressure gauge housing provides exceptional mechanical strength, impact resistance, and weatherproofing. Grade 304 contains approximately 18% chromium and 8% nickel, forming an impermeable, self-healing chromium oxide passive film that shields internal mechanisms from ambient washdowns, airborne salt, and atmospheric weathering. For virtually all indoor process skids, outdoor refinery panels, and utility stations, a 304 stainless steel case offers dependable corrosion protection without inflating unit costs.
Wetted Parts Materials: The process-wetted assembly consists of the Bourdon tube and the threaded process connection socket. While 304 wetted parts perform reliably with neutral hydraulic fluids, compressed gases, potable water, and mild hydrocarbons, more aggressive media necessitate 316L stainless steel. The addition of 2% to 3% molybdenum in 316L dramatically enhances resistance to pitting, crevice corrosion, and chloride attack. Furthermore, the lower carbon content ("L" designation) of 316L prevents chromium carbide precipitation during welding, maintaining full corrosion resistance along critical joint boundaries. When sourcing a stainless gauge for chemical plant duties, specifying wetted parts 316L pressure gauge construction ensures maximum protection against harsh organic acids, chlorides, and sanitizing chemicals.
Key Specs to Compare
When evaluating an all stainless steel pressure gauge for corrosive media, technical buyers should systematically compare four foundational performance parameters:
- Dial Diameter (100mm / 4-Inch): The 100mm dial diameter represents the recognized international standard for industrial process control boards and operator walk-by inspection. A 304 stainless steel pressure gauge 100mm format provides generous dial surface area for clear, high-contrast graduations and optional dual-scale labeling, allowing technicians to take readings accurately from several paces away without visual fatigue.
- Measurement Scale & Engineering Units: Standardizing on metric MPa (megapascal) pressure scales simplifies process integration and compliance with international plant engineering standards.
- Accuracy Class: Process-grade stainless gauges typically offer ±1.6% Full Scale (F.S.) accuracy according to EN 837-1, providing the required precision for pumps, piping loops, and control valves without the fragile calibration overhead of laboratory instruments.
- Thermal & Environmental Rating: The gauge must tolerate broad operating temperature swings (-40°C to +60°C ambient, up to +150°C medium temperature) while sustaining an IP65 ingress protection rating to resist dust intrusion and direct pressurized washdown jets.
Selecting the Right MPa Range
Proper range selection is fundamental to instrument longevity and measurement precision. Operating an instrument continuously near its full-scale limit accelerates mechanical fatigue of the Bourdon tube, while sizing a gauge with an overly broad range causes normal operating pressures to register in the cramped lower third of the dial, reducing readability.
Under European and international engineering standards (such as EN 837-1), operating pressure should ideally sit within the middle third of the dial scale. For steady, non-fluctuating loads, maximum operating pressure should not exceed 75% of the full scale; for fluctuating or pulsating loads, service pressure should remain below 65% of the gauge's maximum range.
Below is the standard MPa range selection guide for industrial process duty:
| Nominal Range (MPa) | Recommended Steady Pressure | Recommended Pulsating Pressure | Common Plant Applications |
|---|---|---|---|
| 0-1 MPa (0-10 bar) | 0.25 to 0.75 MPa | Up to 0.65 MPa | Low-pressure steam, utility air, water supply loops |
| 0-1.6 MPa (0-16 bar) | 0.40 to 1.20 MPa | Up to 1.04 MPa | Chemical feed lines, cooling systems, process pumps |
| 0-2.5 MPa (0-25 bar) | 0.60 to 1.85 MPa | Up to 1.60 MPa | High-pressure dosing, compressed gases, boiler feed |
| 0-6 MPa (0-60 bar) | 1.50 to 4.50 MPa | Up to 3.90 MPa | Hydraulic auxiliary systems, gas distribution manifolds |
| 0-10 MPa (0-100 bar) | 2.50 to 7.50 MPa | Up to 6.50 MPa | Heavy hydraulic machinery, high-pressure injection lines |
For piping arrangements requiring a standard vertical connection from below rather than a rear panel mount, engineers can also deploy a bottom-mount stainless radial pressure gauge to achieve identical corrosion resistance on exposed fluid headers.
Panel & Flush Mounting — Center-Back Connection with Back Flange
In modern control architecture, process instruments are increasingly centralized within centralized instrument cabinets, control consoles, or wall-mounted enclosures. This arrangement shields personnel from process hazards and protects the instrument from mechanical impacts.
Panel mounting calls for specialized mechanical geometry: a center-back threaded process connection combined with a rear mounting flange (back flange). Installing a back mount pressure gauge panel setup allows the gauge body to sit flush against the console cutout. The rear flange provides three perimeter clearance holes for rigid bolt fixation to the structural plate, ensuring that vibration, line turbulence, or physical bumping cannot dislodge or twist the instrument.
Process connections are typically standardized across three industrial thread profiles: metric M20×1.5, parallel pipe G 1/2 (BSP), or tapered 1/2" NPT. Selecting the correct thread geometry ensures leak-tight sealing with standard plant fittings and manifold blocks.

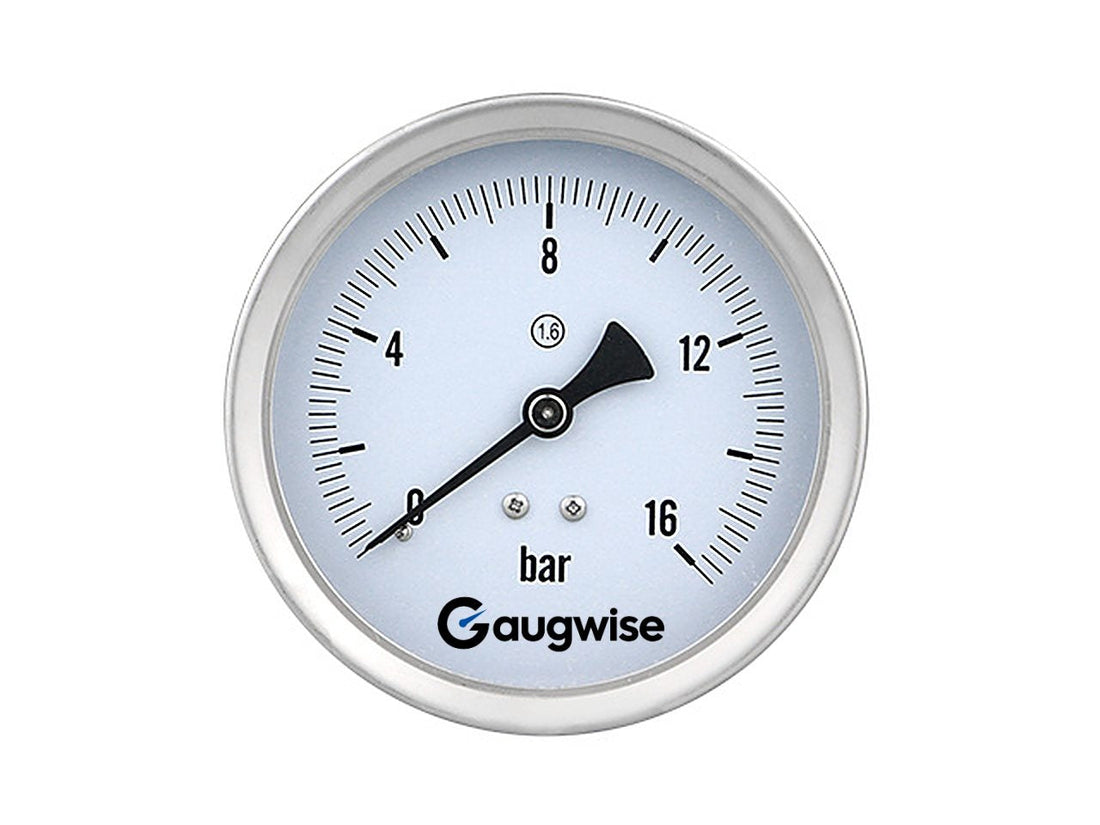

The Gaugwise Y100ZBF Example
When your facility requires an uncompromising combination of flush panel mounting, all-stainless durability, and precision indication, the Gaugwise Y100ZBF 100mm model serves as the industry benchmark.
Engineered specifically for harsh processing environments, the Y100ZBF integrates a rugged 304 stainless steel case with precision-crafted 304/316L wetted Bourdon tube components. Its center-back connection and rear mounting flange make installation on instrument boards clean and secure, while its ±1.6% F.S. accuracy delivers reliable indication across 5 standard MPa ranges (0-1 to 0-10 MPa).
Beyond mechanical specifications, Gaugwise addresses OEM and engineering branding needs by offering complimentary custom dial printing on all made-to-order units. Whether you require your corporate logo, custom color-coded alarm zones, specific service tags, or specialized dual-scale increments, Gaugwise provides custom dial stainless steel pressure gauge OEM solutions without minimum order surcharges or extended lead times.
Application Checklist
Before finalizing your procurement specifications for corrosive duty, review this engineering checklist across your operating environment:
- Chemical Dosing & Process Plants: Verify that wetted parts (304 or 316L) resist your concentration of acids, alkalis, solvents, and cleaning chemicals.
- Marine, Offshore & Coastal Facilities: Ensure the housing is sealed all-stainless construction to withstand continuous salt fog, seawater washdowns, and humid marine atmospheres.
- Food, Beverage & Clean Room Operations: Confirm smooth exterior stainless finishes that endure aggressive chemical clean-in-place (CIP) and sanitize washdowns without harboring contaminants.
- Industrial Water & Wastewater Treatment: Protect instrumentation against hydrogen sulfide gas, chlorine injection vapors, and corrosive sludge pumping lines.
- Control Consoles & Panel Enclosures: Confirm that cutout dimensions match a 100mm dial with appropriate rear flange bolt hole spacing and back connection clearance.
Summary + Next Steps
Selecting the right pressure gauge for aggressive service is not merely a question of baseline pressure rating; it requires matching full metallurgical resistance, dial sizing, and mounting architecture to your process demands. An all-stainless construction with 304 housing, 304/316L wetted parts, a 100mm dial, and a rigid center-back flange delivers the optimal balance of durability, readability, and structural security.
As an agile stainless pressure gauge manufacturer, Gaugwise works directly with process engineers and industrial procurement teams to supply factory-direct instruments with guaranteed build quality, volume pricing, and personalized dial printing. To discuss specific chemical compatibilities, request volume quotations, or configure a customized instrument for your facility, request a custom quote from our engineering team today.
Frequently Asked Questions (FAQ)
When does a standard gauge fail and when do I need all-stainless?
Standard painted steel and brass gauges fail rapidly in the presence of acidic vapors, chemical washdowns, or marine salt air; an all-stainless gauge is required whenever corrosive atmospheric or fluid media are present.
What is the difference between 304 and 316L wetted parts?
Grade 304 wetted parts suit neutral fluids and mild industrial chemicals, whereas 316L contains 2-3% molybdenum for enhanced resistance against pitting, chlorides, and aggressive acids.
What MPa range should I choose for my line pressure?
Select a gauge whose maximum scale places your normal working pressure within the middle third of the dial, typically with normal operating pressure not exceeding 65% to 75% of full scale.
Can I get a custom dial with my logo on the Y100ZBF?
Yes, Gaugwise provides complimentary custom dial printing—including company logos, custom scales, and colored alarm bands—on all made-to-order Y100ZBF units from a 1-piece minimum order quantity.
