Electric Contact Pressure Gauge: Set Points, Alarm & Control for Boilers and Pumps
In industrial boiler plants, fluid power stations, and municipal pumping facilities, maintaining safe operating pressure requires both clear on-site visual indication and automated circuit protection. Installing a separate pressure gauge alongside an external electronic pressure switch adds unnecessary pipe penetrations, manifold clutter, and wiring complexity. Combining continuous dial indication with integrated electrical limit switches, an electric contact pressure gauge provides a unified, space-saving electromechanical solution for automated pump staging and high-pressure safety interlocks.
What Is an Electric Contact Pressure Gauge
An electric contact pressure gauge—frequently specified as a pressure gauge with alarm switch—bridges the gap between purely mechanical dial instruments and electronic pressure transmitters. Internally, the instrument houses a conventional Bourdon tube measuring element coupled to a mechanical gear movement. However, unlike a plain mechanical gauge, the dial face incorporates adjustable electrical contact arms that interface directly with control circuits.
When system pressure fluctuates, the primary pointer traverses the scale. As it reaches predefined upper or lower pressure thresholds, electrical contact points physically engage or separate. This action opens or closes external electrical circuits without requiring external programmable logic controllers (PLCs) or secondary signal converters.
By delivering direct local visual pressure readouts alongside reliable contact switching, an adjustable limit contact pressure gauge reduces installation costs, eliminates redundant pipe tapping, and provides maintenance personnel with immediate on-site diagnostic feedback during process upsets.
Upper & Lower Limit Set Points: How Alarm/Control Works
Understanding how contact set points operate is essential for configuring pump sequencing and boiler alarm interlocks. An adjustable upper lower limit pressure gauge typically features two independently movable target pointers—one for the low-pressure threshold and one for the high-pressure threshold—positioned above the main indicating pointer.
Most industrial applications utilize magnetic-assisted electrical contacts. As the main indicating pointer nears a set-point arm, small permanent magnets accelerate the contact closure just before engagement. This magnetic snap-action provides firm contact pressure, virtually eliminating electrical arcing, contact bounce, and chatter caused by subtle process pulsations.
In an automatic pump control configuration, the lower set-point contact engages when line pressure drops to the minimum threshold, closing an electrical relay to start the booster pump. As fluid fills the system and pressure climbs to the upper set-point, the high-limit contact opens, de-energizing the starter contactor and shutting down the pump. In boiler applications, the upper set-point acts as an emergency over-pressure safety trip, sounding an audible alarm and cutting fuel supply to the burner.
Critical Specs That Matter in Contact Gauges
When selecting an electrical contact pressure gauge MPa model for machinery control, engineers evaluate five primary engineering specifications:
Dial Size: A 100mm (4-inch) dial diameter is the industry standard for control gauges. The 100mm diameter provides ample physical space for dual set-point indicator arms, clear scale graduations, and terminal wiring junctions without obstructing the main reading needle.
Accuracy Class: A standard ±1.6% Full Scale accuracy (EN 837-1 Class 1.6) rating ensures dependable process indication and tight set-point switching repeatability across millions of operational cycles.
Contact Rating & Voltage: Standard magnetic-assisted contacts are rated for AC 380V or DC 220V with a maximum switching power of 30VA. To prevent contact oxidation and weld failure, they should switch pilot relays or PLC digital inputs rather than carrying direct motor loads.
Wetted Parts Metallurgy: High-grade brass and copper alloy Bourdon tubes and connection sockets provide proven fatigue resistance and cost efficiency for non-corrosive steam, water, mineral hydraulic oils, and compressed air.
Operating Medium & Environment: While contact gauges excel in standard pump and boiler loops, environments subject to severe mechanical vibration and fluid pulsation should utilize an oil filled pressure gauge for vibration-heavy process duty.
Selecting the Right Range & Connection
To ensure responsive switching and protect internal Bourdon tubes from fatigue, apply the 75% rule: continuous operating pressure should fall within 33% to 75% of the gauge's maximum scale span. For automated pump control, both the upper cut-off and lower cut-in pressures must fall within this optimal operating band.
| Measurement Range | Equivalent Bar / PSI | Recommended Industrial Applications |
|---|---|---|
| 0 - 0.1 MPa | 0 - 1 bar / 0 - 14.5 psi | Low-pressure boiler systems, municipal water intake, draft fan safety interlocks. |
| 0 - 0.6 MPa | 0 - 6 bar / 0 - 87 psi | Commercial steam boiler pressure alarm gauge, cooling water pump staging, HVAC headers. |
| 0 - 1.6 MPa | 0 - 16 bar / 0 - 232 psi | High-pressure steam boilers, industrial air compressor receiver tanks, booster skids. |
| 0 - 2.5 MPa | 0 - 25 bar / 0 - 362 psi | Secondary hydraulic power units, pilot pressure regulation, chemical transfer loops. |
| 0 - 6.0 MPa | 0 - 60 bar / 0 - 870 psi | Primary hydraulic press systems, oilfield manifold injection, emergency shutdown circuits. |
Process connection threading must match equipment ports accurately. Metric M20×1.5 and European G 1/2" parallel threads seal against an elastomeric O-ring or flat copper washer, facilitating straightforward vertical alignment. North American 1/2" NPT tapered threads seal via metal-to-metal flank interference, requiring standard PTFE thread tape.

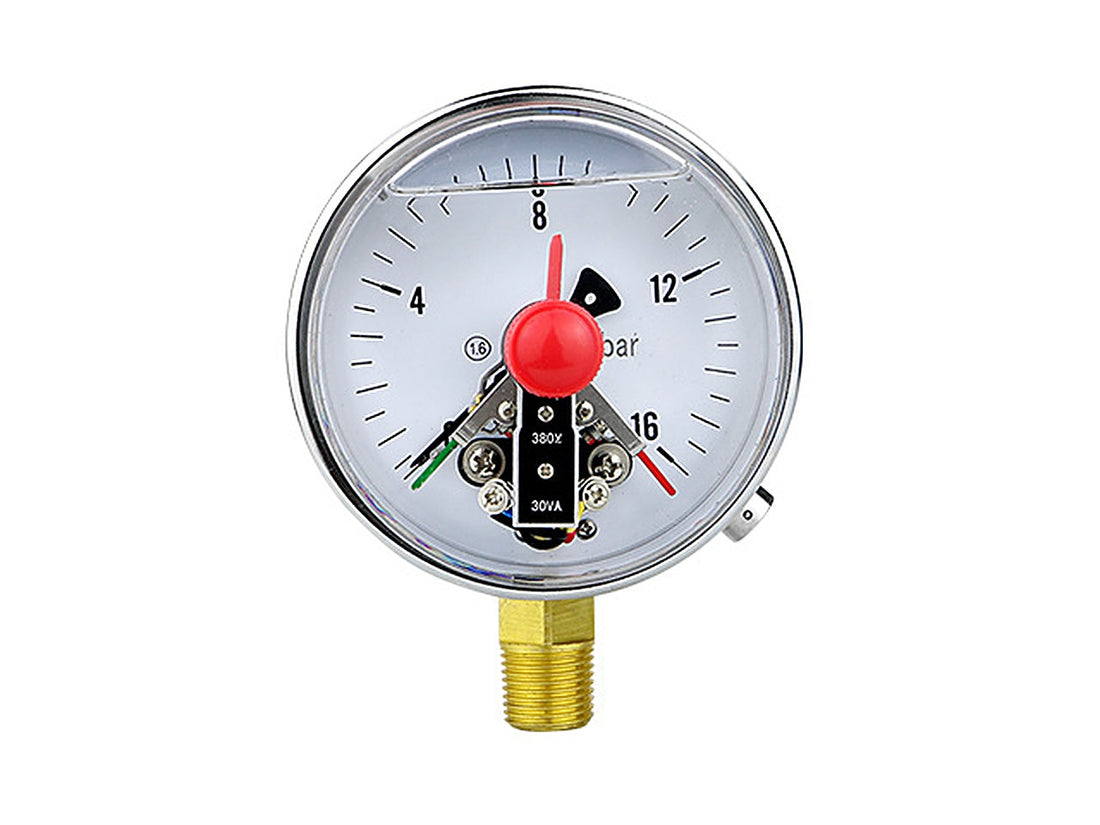

The Gaugwise YNXC100 Example
The Gaugwise YNXC100 represents a purpose-engineered benchmark for industrial circuit alarm and control. Designed with a robust 100mm dial and an industrial steel casing, it combines ±1.6% Full Scale indication accuracy with magnetic-assisted adjustable upper and lower electrical limit contacts.
Available in five standardized metric ranges (0-0.1 MPa, 0-0.6 MPa, 0-1.6 MPa, 0-2.5 MPa, and 0-6 MPa), the YNXC100 accommodates M20×1.5, 1/2" NPT, and G 1/2" radial bottom connections. Equipped with durable brass and copper alloy wetted parts and an individual unit weight of approximately 0.95 kg, it withstands demanding plant environments while providing crisp electrical switching.
As a custom set point pressure gauge OEM supplier, Gaugwise provides complimentary custom dial face printing from a 1-piece minimum order quantity (MOQ). Industrial buyers, boiler manufacturers, and automation skids can add custom corporate logos, specific dual-unit scales, or designated safety color zones directly onto the dial face. Built made-to-order within ~10 working days, the YNXC100 is supported by scalable volume tier pricing.
Application Checklist for Plant & Safety Engineers
Before standardizing electric contact pressure gauges across your plant or OEM machinery, review this practical engineering checklist:
- Steam Boilers & Autoclaves: Is an electric contact pressure gauge for boiler lines installed to trigger emergency fuel cut-offs and audible over-pressure alarms?
- Pump Automation Stations: Are upper and lower limit set points calibrated to maintain line pressure without rapid pump cycle hunting?
- Safety Interlock Circuits: Are gauge electrical contacts connected to intermediate control relays rather than direct motor loads to prevent contact welding?
- Oil, Gas & Petrochemical Skids: Are wetted brass/copper alloy components compatible with the process media, or are isolating diaphragm seals required?
- Lead Time & Sourcing: Does your instrument supplier provide custom set points, dial branding, and made-to-order production within ~10 working days?
Summary & Procurement Next Steps
Integrating on-site dial pressure measurement with automated electrical switching streamlines piping design, reduces component costs, and enhances facility safety. By specifying a 100mm electric contact pressure gauge, applying the 75% operating rule, and utilizing magnetic-assisted contacts with intermediate relays, engineers can establish reliable automated protection across critical boiler and pump installations.
Explore full technical drawings, electrical terminal schematics, and quantity tier pricing on the Gaugwise YNXC100 product page, or contact our engineering team to request a custom quote for your upcoming boiler project or automated pump skid.
Frequently Asked Questions
What is an electric contact pressure gauge?
It is an instrument that combines continuous mechanical dial pressure indication with adjustable electrical limit contacts to trigger automated alarms and equipment control.
How do the upper and lower set points work?
Adjustable set-point arms on the dial face engage magnetic-assisted contacts when the indicating needle reaches preset high or low thresholds, opening or closing external circuits.
What MPa range should I choose for a boiler?
Select a range where your boiler's normal continuous working pressure sits between 33% and 75% of the gauge span, typically 0-0.6 MPa or 0-1.6 MPa for commercial steam boilers.
Can I customize the set points or dial on the YNXC100?
Yes, Gaugwise provides free custom dial face printing and company branding starting from a 1-piece minimum order quantity, with easily adjustable on-site limit set points.
