How to Select a Capsule Micro Pressure Gauge for Low-Pressure Gas & Air
Measuring low-pressure gas, clean air, and ventilation draft presents unique instrumentation challenges. Standard Bourdon tube gauges are engineered for high hydraulic pressures and lack the physical sensitivity required to register minute pressure differentials below 100 kPa. When monitoring sensitive draft pressures, selecting a specialized capsule micro pressure gauge ensures accurate, repeatable indication without overloading or damaging delicate measuring elements.
Why Low-Pressure Gas & Air Need a Capsule (Diaphragm) Gauge
Traditional industrial pressure instruments rely on a curved C-shaped Bourdon tube. For a Bourdon tube to expand and deflect, the incoming process medium must exert substantial mechanical force. In low-pressure gas pipelines, burner combustion chambers, and ventilation ducts where pressures often register below 10 kPa, standard tubes remain virtually stationary, producing no readable pointer deflection.
A capsule type pressure gauge—often described as a diaphragm micro pressure gauge—solves this mechanical limitation. The sensing element consists of two corrugated, circular metal diaphragms welded together around their outer circumference to form an airtight hollow chamber (capsule). When low-pressure gas enters the interior of the capsule, both diaphragms flex outward simultaneously.
This opposing diaphragm geometry generates significantly greater surface deflection per unit of pressure than a rigid tube. A high-ratio mechanical transmission movement translates this subtle expansion into broad, crisp pointer rotation, creating a dependable low pressure gauge kPa technicians rely on for non-aggressive dry gases and clean air.
kPa vs MPa: The Correct Engineering Unit for Micro-Pressure
A critical engineering rule in low-pressure specification is selecting the correct SI metric unit. Industrial hydraulic and pneumatic systems operate in Megapascals (MPa), where 1 MPa equals 1,000 kilopascals (kPa). In contrast, draft pressure, combustion gas lines, and cleanroom air systems operate strictly in kilopascals (kPa).
Attempting to measure micro-pressure using an MPa gauge leads to gross measurement errors. For example, a burner supply pressure of 25 kPa equals a minuscule 0.025 MPa. On an analog 0-1 MPa dial, 0.025 MPa is a barely perceptible sliver barely off the zero pin, making accurate visual monitoring impossible. By using dedicated kPa scales spanning 0-5 kPa up to 0-100 kPa, the dial pointer sweeps across a full 270-degree arc, providing superior resolution for burner balancing and draft monitoring.
While high-pressure machinery lines require an oil filled pressure gauge rated in MPa, low-pressure gas and ventilation systems must strictly specify kPa instruments.
Critical Specs That Matter in Capsule Gauges
When selecting a capsule pressure gauge for plant or building automation, engineers evaluate five essential technical specifications:
Dial Size: A 100mm (4-inch) dial diameter is the universal benchmark for industrial facilities. The 100mm dial face offers expansive scale graduations, allowing operators to detect 0.1 kPa pressure fluctuations from across the maintenance walkway.
Accuracy Class: Standard capsule instruments deliver ±2.5% Full Scale accuracy (EN 837-3 Class 2.5). This provides the ideal engineering balance between delicate diaphragm response and durable mechanical stability.
Casing Construction: A stainless case capsule pressure gauge protects the internal movement against atmospheric corrosion, washdown water, and industrial particulates, ensuring long service life in harsh plant environments.
Capsule Metallurgy: High-elasticity brass and copper alloy capsule assemblies provide fatigue-resistant deflection for dry natural gas, liquefied petroleum gas (LPG), compressed air, and non-corrosive exhaust streams.
Zero Adjustment Mechanism: Quality capsule gauges feature an external or dial-accessible zero adjustment screw, allowing technicians to re-zero the pointer after installation without disassembling the housing.
Selecting the Right Range & Connection
To avoid over-pressuring the sensitive capsule element, normal operating pressure should reside between 33% and 75% of the gauge's maximum scale span. Never expose a capsule gauge to sudden high-pressure shocks or hydraulic liquid media.
| Recommended Range | Equivalent mbar / mmH2O | Typical Industrial Applications |
|---|---|---|
| 0 - 5 kPa | 0 - 50 mbar / 0 - 500 mmH2O | Draft pressure gauge for combustion, flue gas draft, ultra-clean room air differential. |
| 0 - 10 kPa | 0 - 100 mbar / 0 - 1,000 mmH2O | Natural gas burner supply manifolds, industrial furnace draft, air filtration ducts. |
| 0 - 25 kPa | 0 - 250 mbar / 0 - 2,550 mmH2O | Diaphragm pressure gauge for gas burners, commercial boiler gas trains, biogas piping. |
| 0 - 60 kPa | 0 - 600 mbar / 0 - 6,100 mmH2O | LPG vaporizer outlets, pneumatic conveying air lines, air blower discharge. |
| 0 - 100 kPa | 0 - 1,000 mbar / 0 - 10,200 mmH2O | Low pressure gauge 0-100 kPa for compressed air regulation, medical gas pipelines. |
For process connections, verify whether equipment manifolds require metric M20×1.5, European G 1/2" parallel threads with flat copper sealing washers, or North American 1/2" NPT tapered pipe threads. Radial bottom mounting remains the standard orientation for gas trains and ventilation piping.
The Gaugwise YE100BF Example

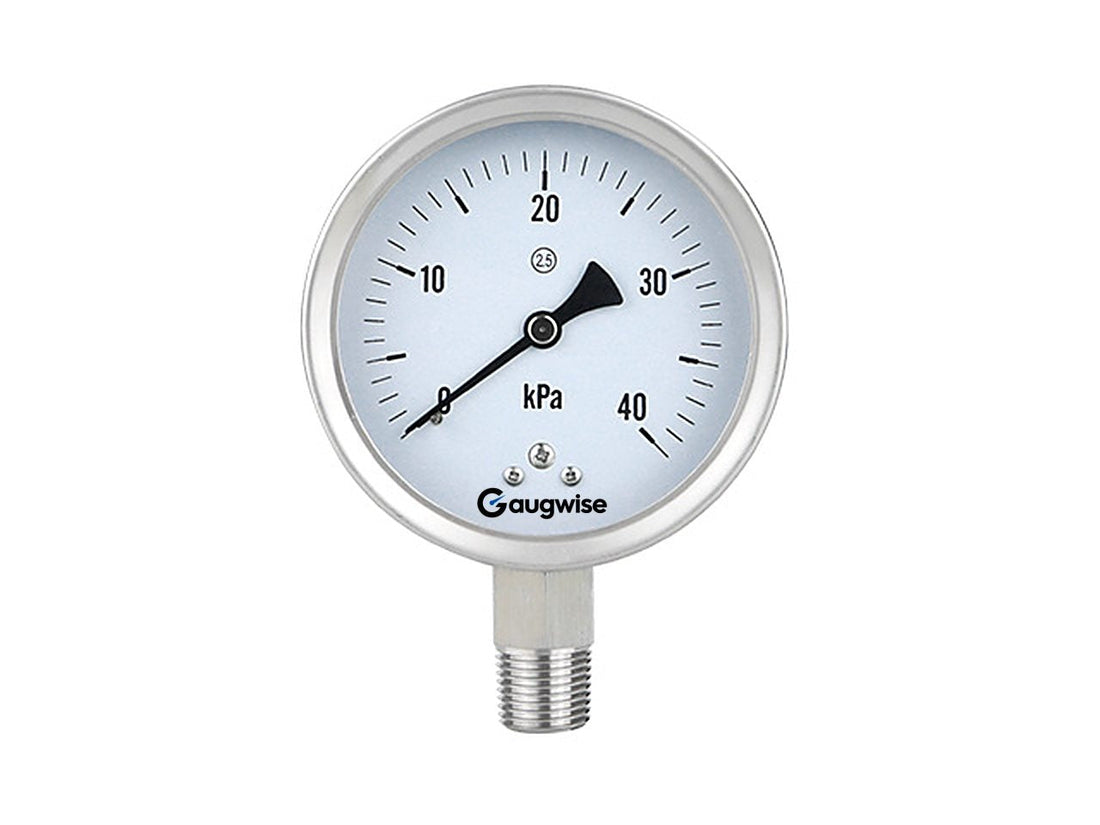

The Gaugwise YE100BF represents a benchmark for precision low-pressure gas measurement. Built with a 100mm dial and an impact-resistant stainless steel casing, it encloses a sensitive copper alloy capsule element calibrated to ±2.5% Full Scale accuracy.
Engineered exclusively for dry gaseous media, the YE100BF is available in five standardized metric ranges: 0-5 kPa, 0-10 kPa, 0-25 kPa, 0-60 kPa, and 0-100 kPa. Process connections are configurable in M20×1.5, 1/2" NPT, and G 1/2" radial bottom mount. With a single-unit gross weight of approximately 0.80 kg, it installs securely on standard gas valves and duct fittings.
As a specialized pressure gauge manufacturer, Gaugwise provides complimentary custom dial face printing from a 1-piece minimum order quantity (MOQ). OEM boiler builders, burner technicians, and cleanroom contractors can add custom company logos, colored operating bands, or dual kPa/mbar scales at zero extra cost. Every gauge is made to order within ~10 working days, backed by transparent wholesale volume tier pricing.
Application Checklist for Plant & HVAC Engineers
Before standardizing low-pressure gauges across your plant or HVAC projects, review this engineering checklist:
- Gas Burners & Boilers: Are gas supply trains equipped with a diaphragm pressure gauge for gas burners to ensure safe fuel-air combustion ratios?
- Cleanrooms & Laboratories: Is positive air pressure monitored using a clean air duct pressure gauge to prevent contamination?
- HVAC Ductwork: Are ventilation balancing dampers verified with a capsule micro pressure gauge for HVAC to optimize air delivery?
- Gas Distribution Pipelines: Are natural gas and LPG regulator stations equipped with stainless case capsule pressure gauge units for outdoor durability?
- Medium Verification: Is the measured medium strictly non-condensing dry gas or air, completely free of hydraulic liquids?
Summary & Procurement Next Steps
Accurate micro-pressure measurement is vital for combustion efficiency, environmental safety, and regulatory compliance. By specifying an 80mm or 100mm capsule pressure gauge, selecting the appropriate kPa range, and ensuring a rugged stainless steel case, engineers can maintain reliable gas and draft monitoring across demanding industrial facilities.
Explore technical dimensions and wholesale tier pricing on the Gaugwise YE100BF product page, or contact our engineering specialists to request a custom quote for your upcoming boiler project or HVAC fleet installation.
Frequently Asked Questions
What is a capsule (diaphragm) pressure gauge used for?
A capsule pressure gauge is designed specifically to measure micro and low pressure in non-corrosive dry gases and clean air where conventional Bourdon tube gauges lack sensitivity.
Why is this gauge in kPa and not MPa?
Micro-pressure applications operate below 100 kPa; using kPa provides full 270-degree dial resolution, whereas MPa scales would compress readings into an unreadable sliver near zero.
What accuracy can I expect on a micro pressure gauge?
Industrial capsule pressure gauges deliver standard ±2.5% Full Scale accuracy (EN 837-3 Class 2.5), which is ideal for combustion draft, HVAC balancing, and gas train monitoring.
Can I get a custom scale or logo on the YE100BF?
Yes, Gaugwise provides free custom dial face printing, including custom company logos and dual-scale markings, starting from a 1-piece minimum order quantity.
