How to Choose an Oil Filled Pressure Gauge for Hydraulic & Vibration Environments
In demanding industrial operating conditions, mechanical vibration and hydraulic pulsations represent the primary causes of premature instrument failure. Continuous mechanical shaking causes severe needle flutter, accelerating gear tooth wear, destroying internal calibration, and fatiguing Bourdon tubes until they fail. Specifying a rugged oil filled shock resistant pressure gauge stabilizes internal movement, protects internal linkages against fatigue, and maintains dependable measurement fidelity across continuous machine operations.
Why Oil-Filled (Glycerin) Pressure Gauges for Vibration
Standard dry mechanical gauges rely on delicate, un-damped gear mechanisms to translate the deflection of an elastic Bourdon tube into rotational dial movement. While effective in static laboratory conditions, dry instruments struggle when mounted near rotating equipment, positive displacement pumps, and reciprocating compressor lines.
Subjected to high-frequency mechanical shaking, dry gauge pointers oscillate violently. The internal gear pinion and sector teeth chatter against one another repeatedly, causing fretting wear that rounds off tooth profiles. Within weeks, operators encounter significant needle backlash, zero-point drift, and erratic readings. In severe circumstances, cyclical hydraulic resonance can crack the Bourdon tube neck, causing fluid escape and emergency shutdowns.
Specifying an oil filled pressure gauge for hydraulic systems eliminates this failure mode at the mechanical root. By filling the case with high-viscosity damping fluid, mechanical vibration energy is absorbed before it transfers to the delicate movement assembly, providing an anti-vibration pressure gauge engineered for long-term duty.
How Glycerin Filling Dampens Pointer Flutter & Extends Life
Plant engineers often ask: why fill pressure gauge with glycerin instead of utilizing dry dampeners or silicone oil? Technical-grade 99.7% glycerin provides a balance of physical and chemical characteristics tailored specifically for industrial fluid power installations.
First, glycerin creates controlled viscous fluid drag against pointer movement. When pressure spikes or engine pulsations travel into the gauge, hydrodynamic drag immediately suppresses pointer flutter without delaying true system pressure changes, allowing technicians to capture steady readings instantly.
Second, the liquid bath provides continuous lubrication across internal contact surfaces. Sector teeth, pinion pivots, and hairspring coils remain perpetually lubricated, virtually eliminating dry metal friction and preventing micro-abrasive tooth wear.
Third, a liquid-filled case prevents internal moisture condensation and lens fogging. By displacing internal ambient air, the sealed liquid prevents moisture from accumulating inside the casing during washdowns or outdoor humidity swings, maintaining crystal-clear visibility and protecting internal copper alloy parts from atmospheric corrosion.
Key Specs to Compare When Selecting Gauges
When selecting a glycerin filled pressure gauge for pumps and compressors, instrumentation engineers evaluate five primary technical parameters to match plant requirements:
Dial Size: While compact 60mm dials suit localized control panels, a vibration resistant pressure gauge 100mm (4 inches) is the dominant process and machinery standard. Its generous dial face allows clear readability from several meters away across busy workshop floors.
Engineering Units: Specifying an MPa pressure gauge for hydraulic machinery ensures direct consistency with modern SI metric engineering documentation and international plant schematics (1 MPa = 10 bar = ~145.038 psi), preventing hazardous conversion errors during maintenance.
Accuracy Class: A standard ±1.6% Full Scale (EN 837-1 Class 1.6) rating delivers dependable process accuracy while maintaining the rugged mechanical tolerances necessary to endure severe vibration.
Wetted Metallurgy: Brass and copper alloy Bourdon tubes and connection sockets provide proven fatigue endurance and cost efficiency for non-corrosive mineral oils, water, and compressed air circuits.
Thread Connections: Matching equipment manifolds requires versatile connection options, such as metric M20×1.5, North American 1/2" NPT, and European G 1/2" (BSPP parallel) threads.
Selecting the Right Range & Connection
A common error in fluid power specification is sizing an instrument too close to the operating pressure. To ensure long fatigue life, apply the standard Two-Thirds Operating Rule: continuous working pressure should sit between 33% and 75% of the gauge's maximum scale span.
| Scale Range (MPa) | Bar / PSI Equivalent | Typical Industrial Applications |
|---|---|---|
| 0 - 0.6 MPa | 0 - 6 bar / 0 - 87 psi | Low-pressure hydraulic return lines, cooling water manifolds, pneumatic supply lines. |
| 0 - 1.0 MPa | 0 - 10 bar / 0 - 145 psi | Plant utility air distribution, industrial booster pumps, fluid transfer skids. |
| 0 - 1.6 MPa | 0 - 16 bar / 0 - 232 psi | Multi-stage industrial air compressors, secondary pressure booster lines. |
| 0 - 2.5 MPa | 0 - 25 bar / 0 - 362 psi | Heavy pneumatic automation machinery, pilot pressure circuits, hydraulic return headers. |
| 0 - 6.0 MPa | 0 - 60 bar / 0 - 870 psi | Primary hydraulic power packs, stamping presses, injection molding clamp units. |
When selecting your process connection, confirm whether your manifold requires parallel or tapered threads. M20×1.5 and G 1/2" parallel threads seal against an elastomeric O-ring or flat copper washer, facilitating straightforward vertical alignment. Alternatively, 1/2" NPT tapered threads seal via metal-to-metal flank interference, requiring standard PTFE thread tape.
The Gaugwise YN100 Example

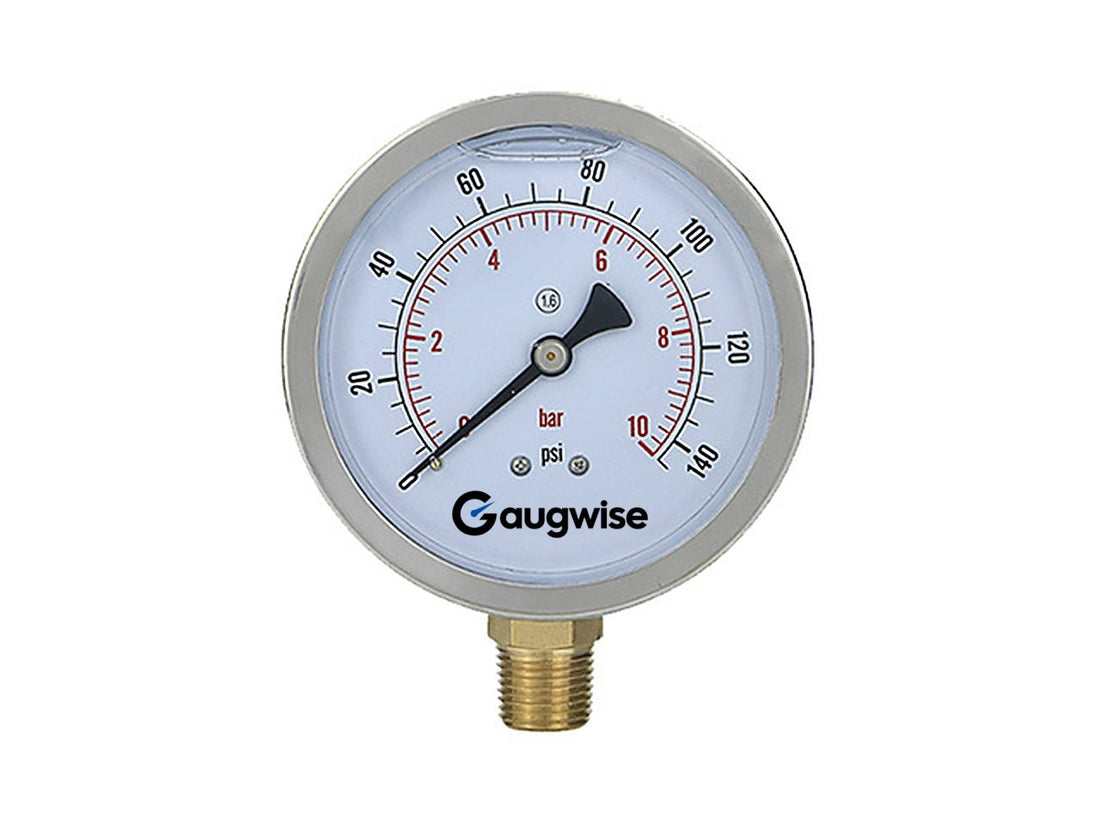

The Gaugwise YN100 100mm shock-resistant pressure gauge illustrates how purpose-built engineering solves industrial vibration challenges. Built with a rugged stainless steel case and high-clarity glycerin fluid, it combines ±1.6% Full Scale accuracy with durable brass and copper alloy wetted components.
Available across five standard ranges (0-0.6 MPa, 0-1 MPa, 0-1.6 MPa, 0-2.5 MPa, and 0-6 MPa), the YN100 accommodates M20×1.5, 1/2" NPT, and G 1/2" radial bottom connections. With an individual unit weight of approximately 0.85 kg, it mounts securely without placing undue bending strain on manifold blocks.
As a specialized oil filled pressure gauge manufacturer, Gaugwise offers a custom dial pressure gauge OEM service at zero extra surcharge from a 1-piece minimum order quantity (MOQ). Machinery builders can incorporate company logos, dual-scale bar/psi graduations, or specific operating safety color bands directly onto the dial face. For test benches requiring digital readouts and telemetry, engineers can also evaluate our high-accuracy digital pressure gauge as an electronic alternative.
Application Checklist for Engineering Teams
Before standardizing pressure instruments across your facility, evaluate these essential equipment checks:
- Hydraulic Power Units: Are pump discharge lines and valve blocks equipped with liquid-filled gauges to absorb rapid directional valve switching spikes?
- Reciprocating Compressors: Are pulsation-dampened gauges installed on discharge heads to prevent pointer flutter?
- Heavy Machine Tools: Are dials sized at 100mm to ensure clear visual inspection from main operating consoles?
- Marine & Outdoor Equipment: Are gauge cases constructed from corrosion-resistant stainless steel to resist salt air and moisture?
- OEM Customization: Does your supplier provide factory-direct custom dial branding with ~10 working days lead time?
Summary & Procurement Next Steps
Selecting an appropriate oil filled pressure gauge protects critical equipment, avoids unexpected downtime, and guarantees clear pressure readings under severe operational shaking. By adhering to the 75% operating rule, choosing the 100mm dial standard, and selecting proven glycerin filling, maintenance teams can extend instrument lifespan across years of demanding service.
View complete engineering drawings, range variants, and volume tier pricing on the Gaugwise YN100 product page, or contact our engineering staff to request a custom quote for your upcoming OEM production run.
