Digital vs Analog Pressure Gauge: When You Need a Digital LCD Model
In modern industrial fluid systems, process engineers face a recurring engineering decision: whether to deploy traditional analog dial gauges or invest in digital instrumentation. While analog mechanical dials remain the cost-effective workhorse for general maintenance, high-precision testing and calibration require unambiguous numeric readouts. Deploying an advanced 80mm digital LCD pressure gauge bridges the gap between laboratory precision and workshop durability, eliminating parallax reading errors and delivering instant pressure verification.
Digital vs Analog Pressure Gauges: Key Differences
Analog pressure gauges utilize a mechanical Bourdon tube coupled to a gear pinion and physical pointer. While completely passive and requiring no electrical power, analog gauges are vulnerable to mechanical wear, pointer friction, and visual interpolation inaccuracies. An operator viewing an analog dial at an angle frequently misreads the actual pressure by several percentage points due to optical parallax.
Conversely, an industrial digital pressure gauge replaces mechanical gearing with an electronic piezoresistive or ceramic strain-gauge pressure sensor. Microprocessor circuitry converts fluid deflection directly into an exact numeric reading on a high-contrast liquid crystal display (LCD). Because there are no internal mechanical gear teeth, pinions, or linkages, digital gauges eliminate mechanical backlash, gear tooth wear, and calibration drift caused by repeated movement cycles, delivering a dependable digital pressure readout industrial technicians trust.
When Digital Wins Over Traditional Analog
While analog gauges excel in routine, non-critical line monitoring, digital models are indispensable across specialized operating scenarios:
- Calibration & Metrology: A high accuracy digital pressure gauge 0.5% serves as a portable master gauge or reference standard for testing and certifying field instruments.
- Elimination of Operator Parallax: Direct numeric digits ensure that every operator records identical data, removing subjective visual interpolation between fine dial tick marks.
- Variable Lighting Environments: High-contrast LCD screens ensure rapid legibility in dim equipment skids, crawlspaces, and enclosed control consoles.
- Wide Pressure Spans: Digital resolution remains consistent across the entire measuring span, providing equal readability at both low and high pressure thresholds.
However, in continuous severe vibration where electronics can suffer battery contact chatter, a rugged mechanical oil filled pressure gauge remains the preferred mechanical alternative.
Digital Gauge Specs That Matter
When evaluating a digital pressure gauge for calibration or process control, engineers examine five core technical criteria:
Accuracy Class: High-precision process monitoring demands ±0.5% Full Scale accuracy, four times tighter than standard utility analog gauges (±2.5% F.S.).
Display & Form Factor: A digital pressure gauge 80mm (nominal 3.15-inch dial) provides the ideal balance between compact panel integration and large, legible numeric digits.
Power Supply & Consumption: A battery powered digital pressure gauge with micro-power circuit architecture provides months of continuous field service without requiring external wiring conduits or power packs.
Sensor Metallurgy: Wetted assemblies made from brass and copper alloy provide dependable fatigue strength for non-corrosive hydraulic oils, air, and water lines.
Process Thread Standards: Configurable process connections ensure compatibility with global piping standards, including M20×1.5 metric, 1/2" NPT, and G 1/2" parallel threads.
Selecting the Right Range & Connection
To safeguard internal sensor diaphragms from fatigue, always follow the standard 75% rule: continuous operating pressure should fall between 33% and 75% of the instrument's maximum rated scale.
| Measurement Range | Bar / PSI Equivalent | Recommended Industrial Applications |
|---|---|---|
| 0 - 1.0 MPa | 0 - 10 bar / 0 - 145 psi | Pneumatic test benches, factory compressed air lines, fluid transfer skids. |
| 0 - 2.5 MPa | 0 - 25 bar / 0 - 362 psi | Booster pump calibration, secondary hydraulic circuits, air storage tanks. |
| 0 - 6.0 MPa | 0 - 60 bar / 0 - 870 psi | Medium-pressure hydraulic machinery, injection molding lines, test stands. |
| 0 - 10.0 MPa | 0 - 100 bar / 0 - 1,450 psi | Heavy hydraulic power units, industrial press monitoring, pipeline testing. |
| 0 - 25.0 MPa | 0 - 250 bar / 0 - 3,625 psi | High-pressure hydraulic testing, petroleum injection, structural pressure vessels. |
Process connection selection is equally vital. Metric M20×1.5 and British G 1/2" parallel threads seal against an elastomeric O-ring or flat washer, facilitating vertical alignment. North American 1/2" NPT tapered threads seal via flank interference, requiring standard PTFE sealant tape.

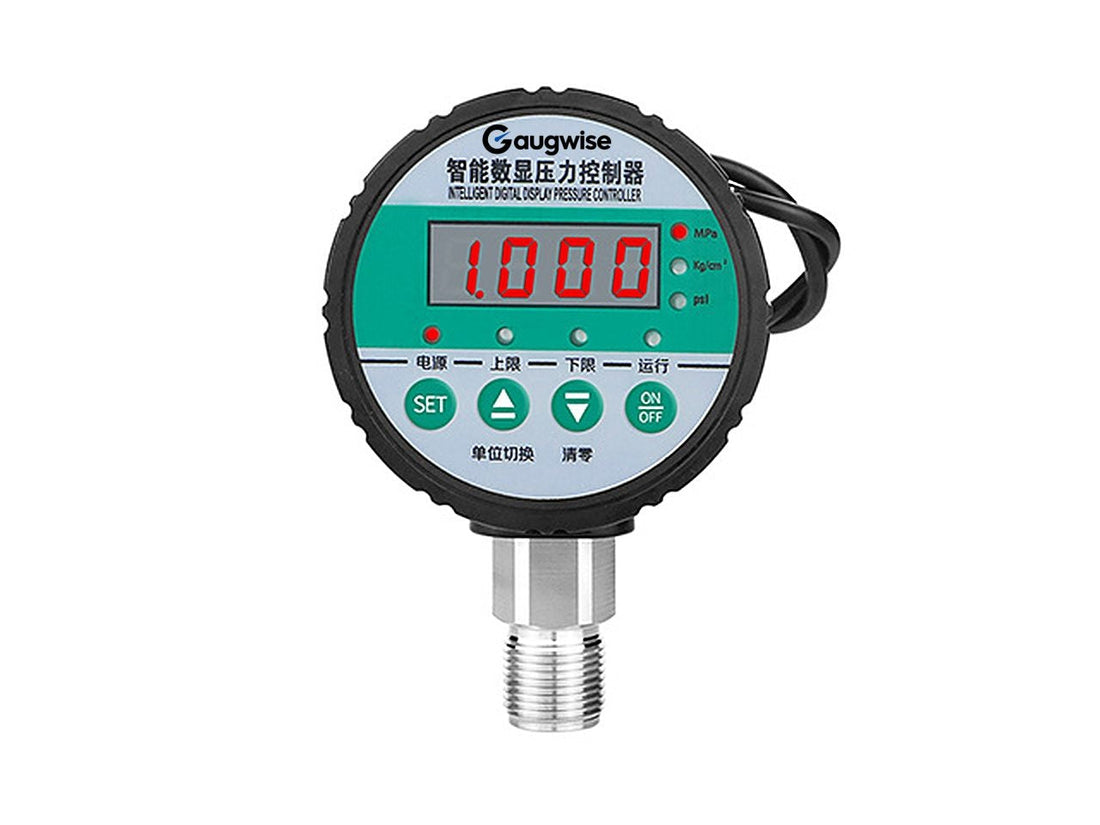

The Gaugwise YS810 Example
The Gaugwise YS810 digital pressure gauge delivers professional precision for workshops and field testing. Engineered with an 80mm digital LCD display, it pairs high-accuracy ±0.5% Full Scale sensing with an energy-efficient internal battery power supply.
Housed in a rugged industrial enclosure with durable brass and copper alloy wetted parts, the YS810 is offered in five standardized MPa ranges: 0-1 MPa, 0-2.5 MPa, 0-6 MPa, 0-10 MPa, and 0-25 MPa. Standard radial bottom connection threading includes configurable M20×1.5, 1/2" NPT, and G 1/2".
As an experienced pressure gauge manufacturer, Gaugwise includes complimentary custom dial face printing from a 1-piece minimum order quantity (MOQ). Industrial buyers and OEM system builders can add custom corporate logos, specialized part numbers, or specific dual-unit scale branding at zero added cost. Made to order within ~10 working days, the YS810 features transparent volume tier pricing for single-piece replacements and volume fleet rollouts.
Application Checklist for Instrumentation Buyers
Before standardizing digital instruments across your facility, verify these practical application parameters:
- Calibration & Testing Benches: Are your reference instruments calibrated to ±0.5% F.S. accuracy to verify field gauges?
- Hydraulic Power Packs: Does your equipment require instant numeric readings without pointer flutter?
- Pipeline & Hydrostatic Pressure Checks: Are technicians recording repeatable digital data without parallax interpretation?
- Chemical & Petrochemical Skids: Are process fluids compatible with brass/copper alloy wetted materials, or are chemical seals required?
- OEM Fleet Production: Does your instrument supplier provide custom dial branding and volume tier pricing on made-to-order units?
Summary & Procurement Next Steps
Choosing between digital and analog pressure instruments centers on accuracy, visual ergonomics, and operating conditions. When repeatable numeric precision, high accuracy (±0.5% F.S.), and unambiguous LCD readouts are required, an 80mm digital gauge like the Gaugwise YS810 represents the premier engineering solution.
Review detailed specifications, technical drawings, and quantity tier pricing directly on the Gaugwise YS810 product page, or contact our engineering staff to request a bulk quote for your testing facility or OEM equipment builds.
Frequently Asked Questions
What is the accuracy of a digital pressure gauge?
A professional digital pressure gauge like the Gaugwise YS810 provides ±0.5% Full Scale accuracy, delivering significantly higher precision than standard mechanical analog gauges.
Is a digital pressure gauge battery powered?
Yes, the YS810 is powered by an internal battery utilizing low-power microprocessor circuitry for extended operational life without external wiring.
Digital or analog pressure gauge, which is better for calibration?
Digital pressure gauges are superior for calibration and test benches because their clear numeric LCD readouts completely eliminate operator parallax errors.
Can I get a custom dial or logo on the YS810?
Yes, Gaugwise provides complimentary custom dial face printing and company logo branding from a 1-piece minimum order quantity with no setup surcharge.
